Removing DME Control Unit

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
• Do not touch electric pins and plug contacts.

Information

The number of electric plug connections will vary depending on equipment.

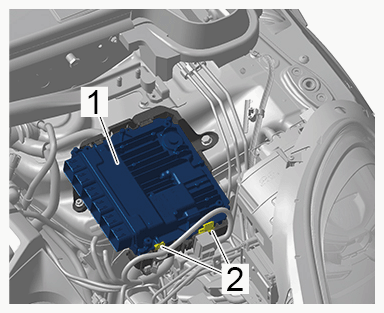

1. Release and disconnect electric plug connections -2-  on the DME control unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

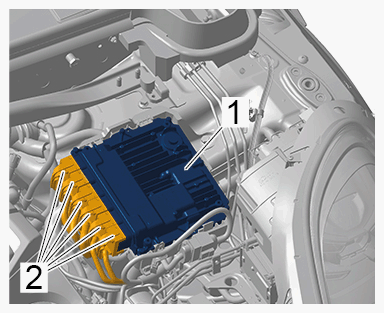

2. Release retaining lugs -2-  and remove DME control unit -1-  from the holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   DME control unit
