Removing Throttle Housing
WARNING: This page is about a different variant/trim than selected.
- Disconnect pressure hose
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

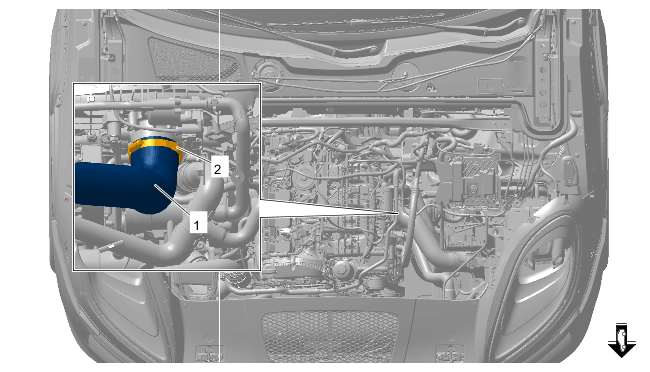

Pressure hose
- 1.1
Loosen screw-type clamp -2-
.
- 1.2
Pull off pressure hose -1-
.
- Remove throttle housing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

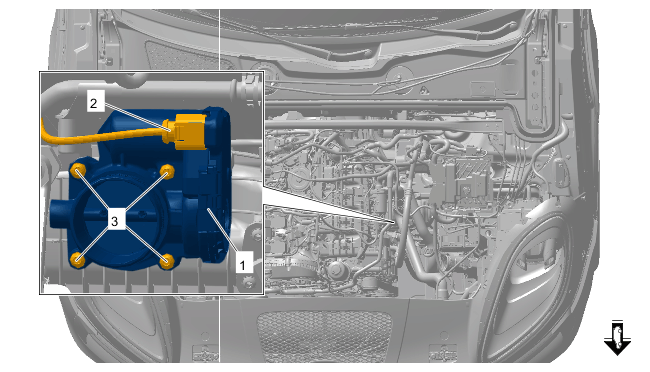

Throttle housing
- 2.1
Unlock and disconnect electric plug connection -2-
.
- 2.2
Unscrew screws -3-
.
- 2.3
Remove throttle housing -1-
.
