Removing Fuel Injector
WARNING: This page is about a different variant/trim than selected.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
- → Avoid contact with hot parts or sources of ignition.
- → Use suction to remove ignitable vapours.
- → Attach warning sign in a clearly visible position.
- → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
- → Secure collection containers/vessels to prevent them from tipping over.
NOTIFICATION
Dirt on injection system components
- Material damage
- Rough-running engine
- Bad exhaust emissions
- → Thoroughly clean connection points and adjacent areas before loosening them. If the engine is very dirty, wash it before starting disassembly work.
- → Lay removed parts on a clean surface and cover them. Do not use fibre-shedding cloths.
- → Carefully cover components or seal them if repair work will not be carried out immediately. Place rubber caps on connections. Seal intake openings with film or adhesive tape.
- → Only install clean parts. Do not take spare parts out of the packaging until just before installation.
- → Never use compressed air when the system is open. Do not move the vehicle.
Information
- Open connections and lines must be closed off using suitable stoppers or caps.
If fuel injectors are stuck, the following procedure applies.

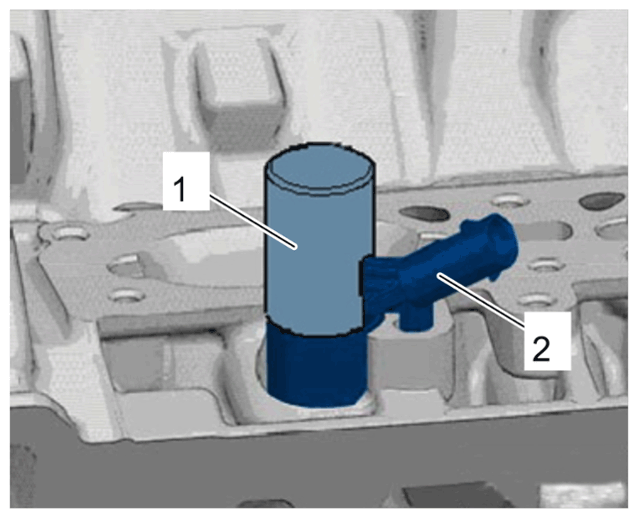

- Push sleeve T10133/18 -1-
over the fuel injector -2-
.
Sleeve T10133/18

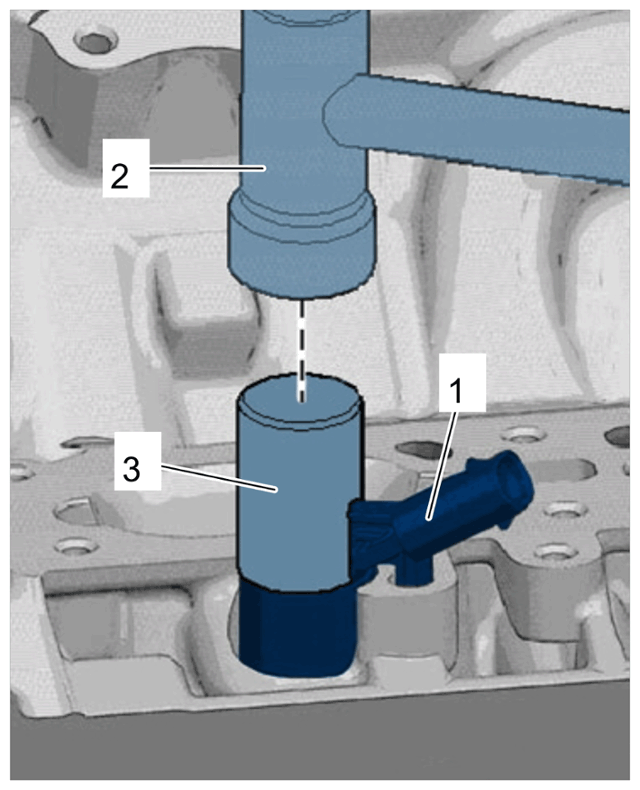

- To loosen the fuel injector -1-
use a hammer -2-
to carefully tap a couple of times on the sleeve T10133/18 -3-
.
Fuel injector
Information
Exceeding the specified torque can cause irreparable damage to the fuel injector.
- Remove fuel injector -1-
.

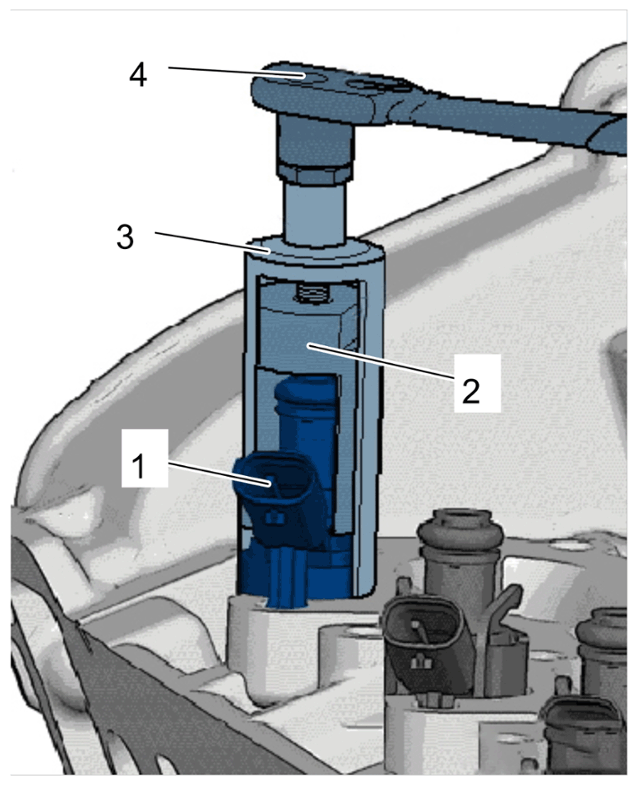

Puller T10133/2A and T10133/16A
- 3.1 Guide puller T10133/2A -2- into the groove on the fuel injector.
- 3.2 Fit puller T10133/16A -3- .
- 3.3 Adjust the torque wrench -4- to 5 Nm (3.5 ftlb.).
- 3.4 Turn the screw with the torque wrench -4- in order to pull out the fuel injector -1- .
- 3.5 If the torque limit of 5 Nm (3.5 ftlb.) is reached but the fuel injector is still not loosened, remove puller T10133/2A -2- and T10133/16A -3- and loosen the fuel injector again using the sleeve T10133/18.
