Removing Air Cleaner Housing
WARNING: This page is about a different variant/trim than selected.

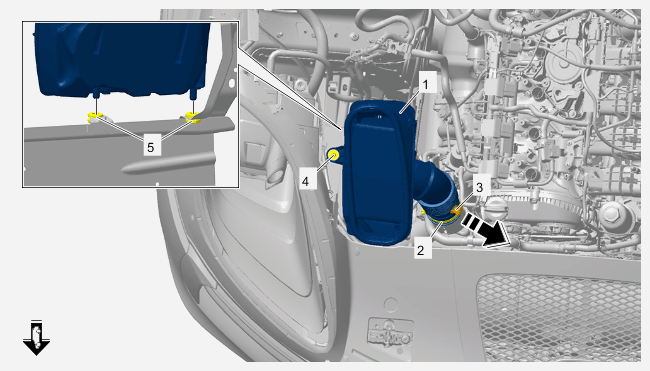

- Remove air cleaner housing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Air cleaner housing
- 1.1
Loosen screw-type clamp -2-
.
- 1.2
Disconnect vacuum line -3-
from intake manifold -Arrow-
.
- 1.3
Unscrew screw -4-
.
- 1.4
Pull air cleaner housing -1-
up out of the guides -5-
.
