Removing Oil Guide Housing

WARNING: This page is about a different variant/trim than selected.
WARNING: Toxic substances
  • Danger of poisoning or suffocation
  • Danger of burns to the eyes and skin
    1. → Ventilate the work area well.
    2. → Never ingest or inhale.
    3. → Read specific information on the Hazard Sheet.
    4. → Wear personal protective gear.
    5. → Do not smoke, eat or drink in the work area.
WARNING: Hot fluid
  • Danger of scalding
    1. → Let the fluid cool down.
    2. → Wear personal protective gear.
WARNING: Highly inflammable or explosive materials
  • Danger of Are or explosion
    1. → Avoid contact with hot parts or sources of ignition.
    2. → Use suction to remove ignitable vapors.
    3. → Attach warning sign in a clearly visible position.
    4. → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
    5. → Secure collection containers/vessels to prevent them from tipping over.
  1. Remove oil intake tube -1-  .

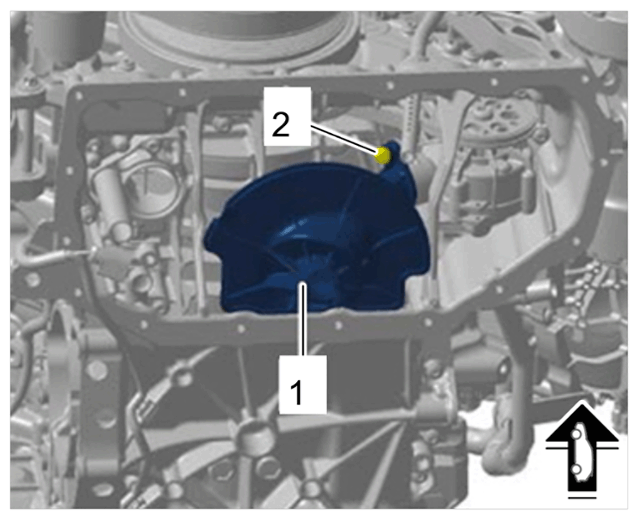

    G15145890Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil intake tube

    1. 1.1  Unscrew screw -2-  .
    2. 1.2  Remove oil intake tube -1-  .
      1. 1.2.1  Replace seal.
  2. Disconnect wire harness at the oil guide housing -2-  .

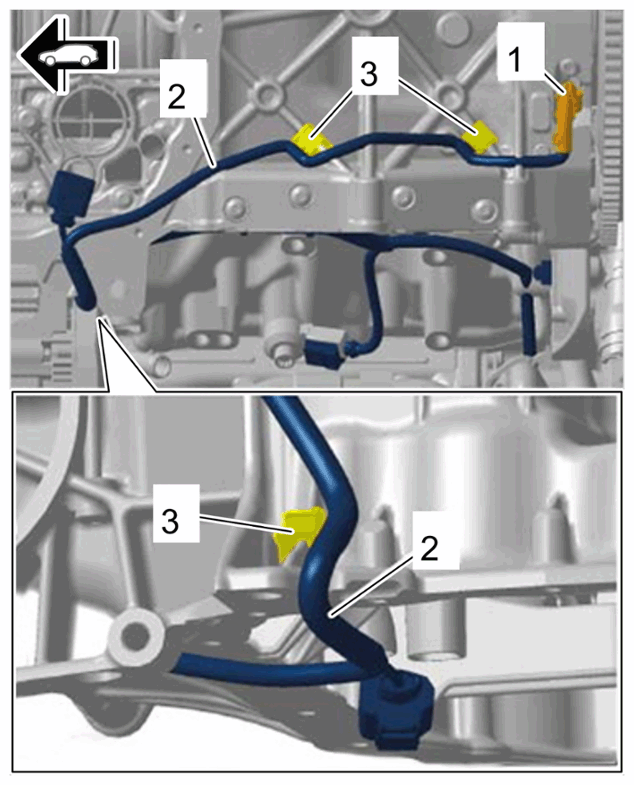

    G15145891Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness on oil guide housing

    1. 2.1  Release and disconnect cable Plug -1-  .
    2. 2.2  Unclip clips -3-  and set wire harness -2-  aside.
  3. Unscrew screws on lower chain housing cover -1 and 2-  .

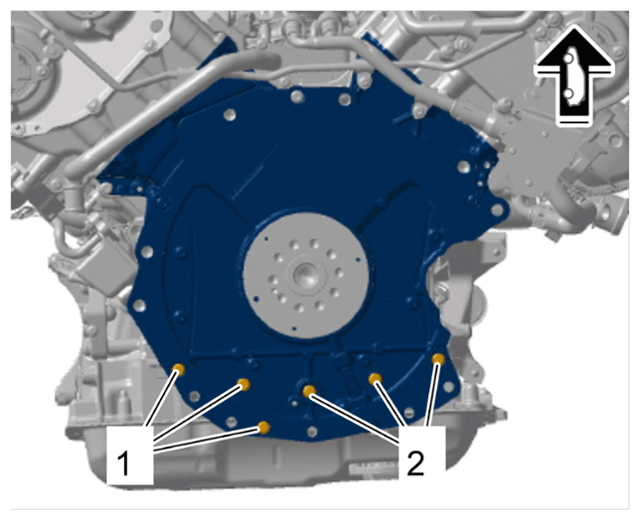

    G15145892Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws for lower chain housing cover

  4. Loosen oil guide housing -20-  .

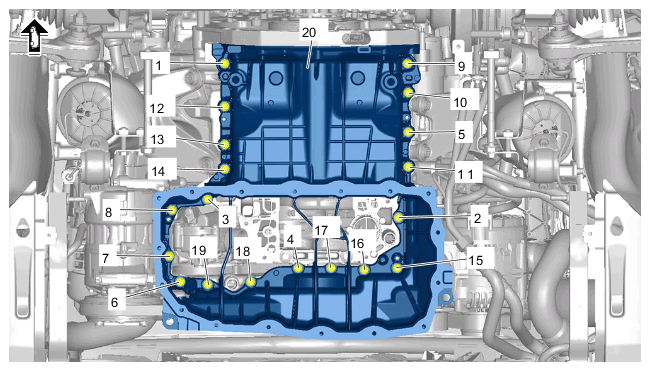

    Fig 1: Oil Guide Housing Screws Loosening Sequence
    G15145893Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil guide housing screws

    1. 4.1  Unscrew screws in the sequence -19 to 1-  .

    Information

    To prevent dirt from getting into the lubrication system, open parts of the engine must be covered.

  5. Remove oil guide housing -1-  .

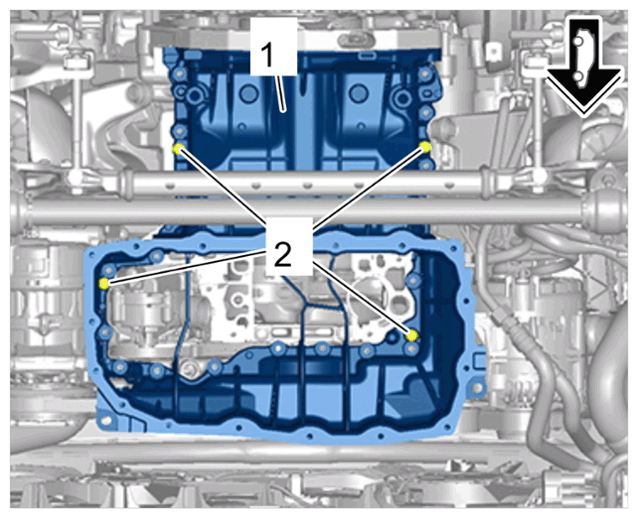

    G15145894Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil guide housing

    1. 5.1  Screw in screws -2-  as far as they will go by hand.
    2. 5.2  Screw in screws -2-  alternately in diagonally opposite sequence by half a turn until the oil guide housing -1-  is released.
    3. 5.3  Unscrew screws -2-  and remove oil guide housing -1-  .
  6. Pull off dowel sleeves on crankcase -1-  .

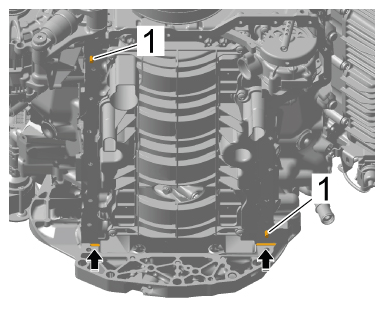

    G15145895Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Dowel sleeves on crankcase
