Installing Oil Guide Housing

WARNING: This page is about a different variant/trim than selected.

WARNING: Risk of damage or injury from foreign bodies Tying around during grinding, drilling and milling

Risk of eye injuries
1. → Wear protective goggles.

Information

To prevent dirt from getting into the lubrication system, open parts of the engine must be covered.

Removing old sealant and sealant residue from the grooves and sealing faces on the oil guide housing and crankcase. For example, by using a rotating plastic brush > Cleaning sealing faces using a plastic brush.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

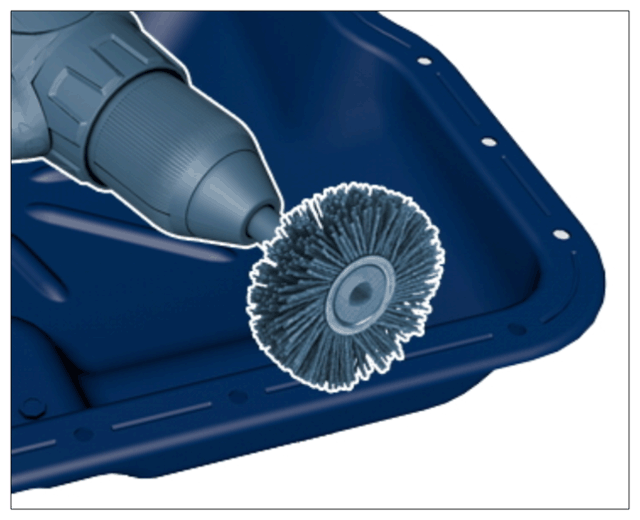

Cleaning sealing faces using a plastic brush

Information

Sealing faces must be free of oil and grease.
Clean sealing faces of the oil guide hoi sing and crankcase.
Information

Check best-before date on the new sealant.
Cut off the nozzle on the tube at the front marking (nozzle diameter is approx. 2.5 mm) > Nozzle on tube.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

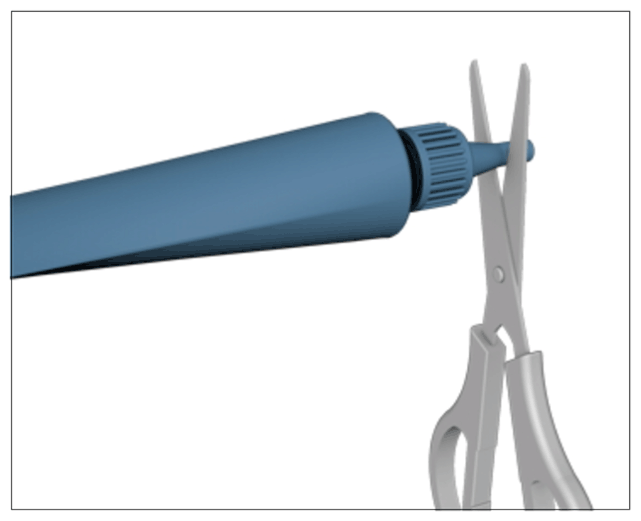

Nozzle on tube

Information
- The bead of sealant must not be thicker than the specified thickness because if it is, excess sealant can get into the oil pan and block the strainer in the oil pump.
- Sealant bead thickness: 3.0 mm.
- Components must be installed within 5 minutes of applying the sealant.

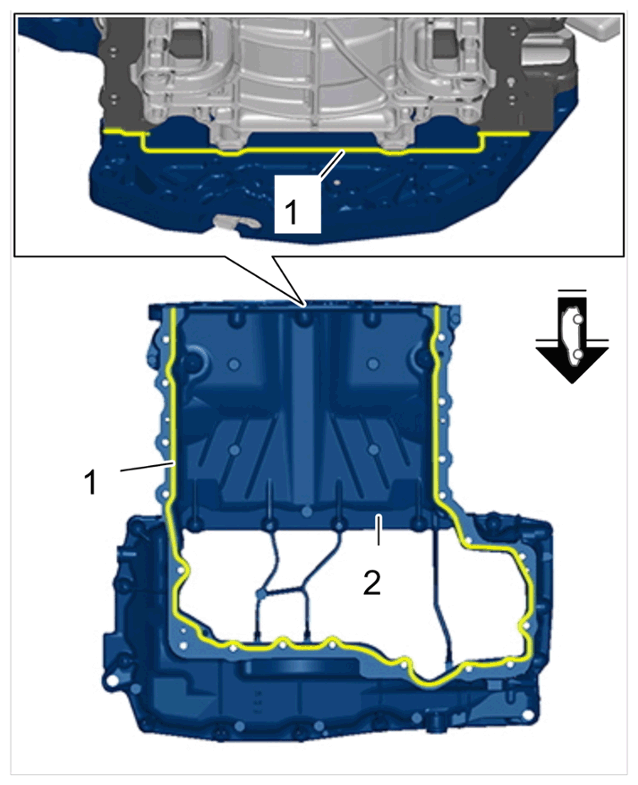

Apply a bead of sealant -1- to the clean sealing face of the oil guide housing -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealant on oil guide housing

Information

The help of another person is required.
Carefully fit oil guide housing and position it from below at an angle to the sealing face on the crankcase and lower chain housing cover.
Information

Observe specified tightening sequence.
Tighten screws on oil guide housing -20- .

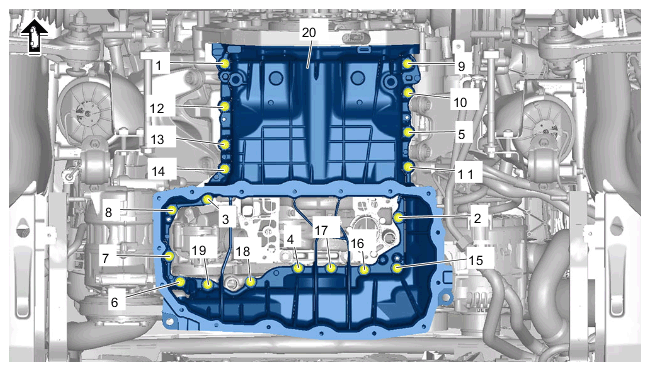

Fig 1: Oil Guide Housing Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil guide housing screws
1. 6.1 Screw in screws in the sequence -1 to 19- by hand.
2. 6.2 Tighten screws in sequence -1 to_9- .
  - Initial tightening 3 Nm (2 ftlb.)
  - Final tightening + 90°
Information

Observe specified tightening sequence.
Secure lower chain housing cover to oil guide housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

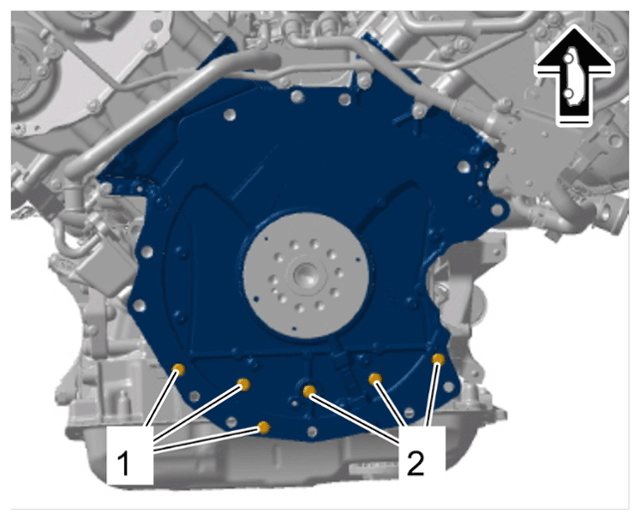

Screws for lower chain housing cover
1. 7.1 Fit and tighten screws -1- .
  - Initial tightening 3 Nm (2 ftlb.)
  - Final tightening + 90°
2. 7.2 Fit and tighten screws -2- .
  - Initial tightening 3 Nm (2 ftlb.)
  - Final tightening + 90°
Secure wire harness to oil guide housing -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

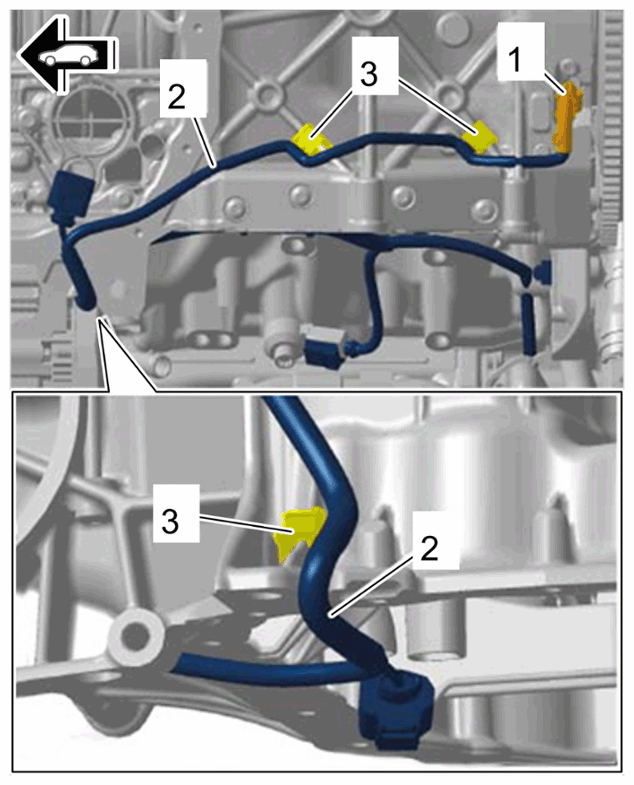

Wire harness on oil guide housing
1. 8.1 Position wire harness -2- and clip in clips -3- .
2. 8.2 Connect and lock cable plug -1- .
Installing oil intake tube -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

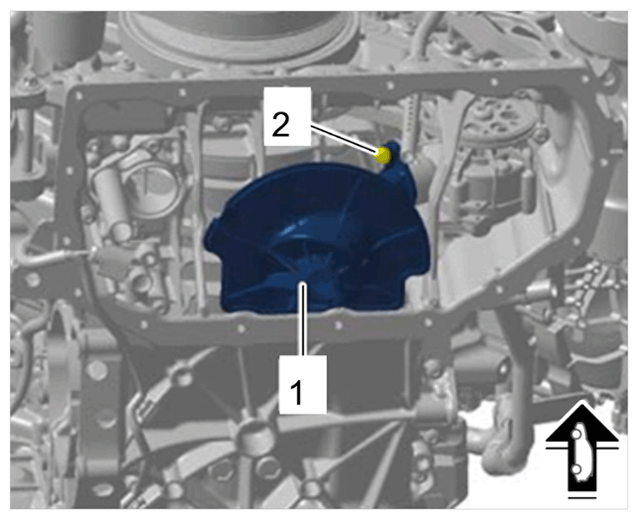

Oil intake tube
1. 9.1 Fit oil intake tube -1- with a new seal.
2. 9.2 Fit and tighten screw -2- .
  - Initial tightening 8 Nm (6 ftlb.)
  - Final tightening + 90°
