Removing Oil Cooler

Information

Risk of contaminating the lubricating system

• Open parts of the cylinder head must be covered.

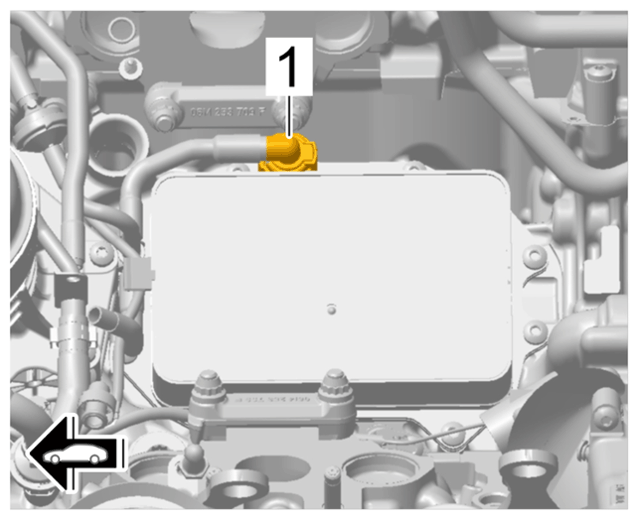

1. Release and disconnect line connection for positive crankcase ventilation -1-  and move it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Positive crankcase ventilation line

   Information

   Risk of contaminating the oil cooler

   • Open parts of the oil cooler must be covered.
2. Remove oil cooler -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil cooler

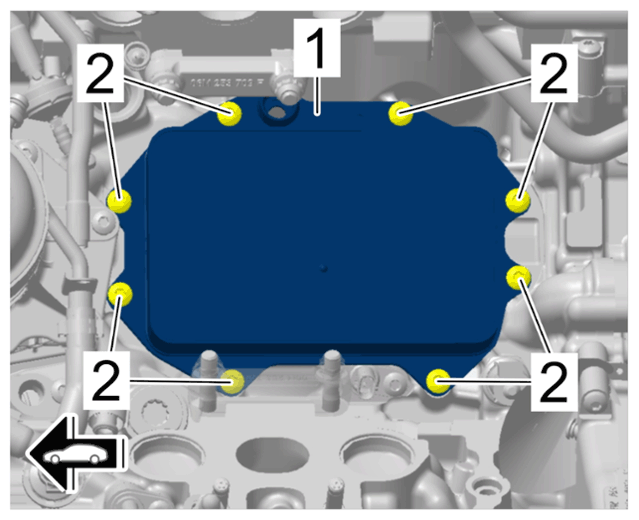

   1. 2.1  Unscrew screws on oil cooler -2-  .
   2. 2.2  Loosen oil cooler -1-  and remove it.
   3. 2.3  Remove residual sealant fro m the oil cooler -1-  and cylinder block using a rotating plastic brush.

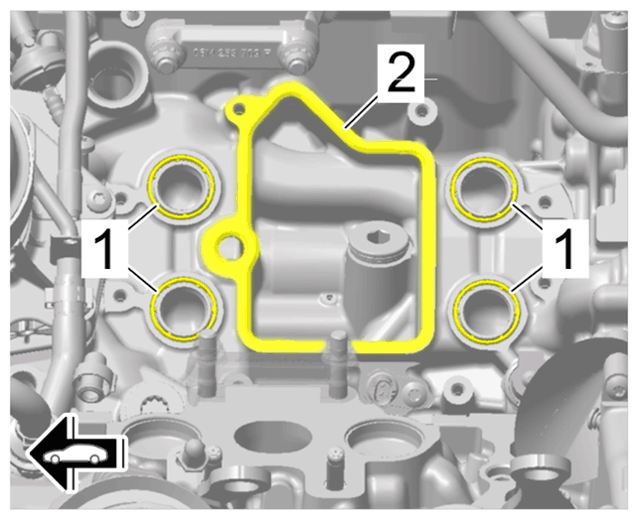

3. Replace seals -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil cooler seal
