Installing Oil Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

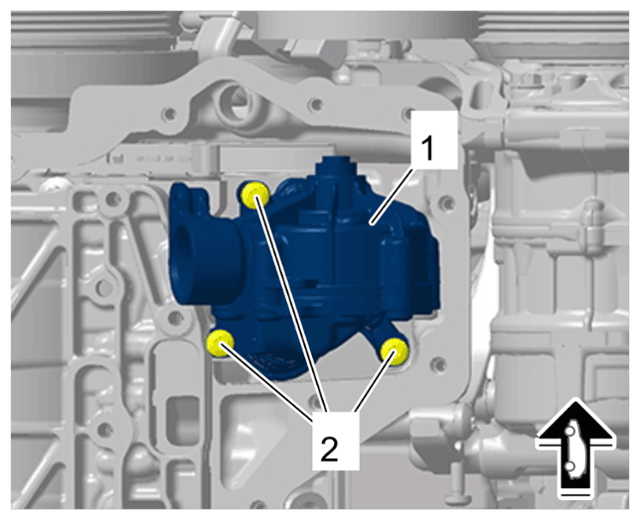

Screws for oil pump

1. 1.1  Position oil pump -1-  with a new  seal.
2. 1.2  Screw in and tighten new  screws -2-  .
   • Initial tightening 8 Nm (6 ftlb.)
   • Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

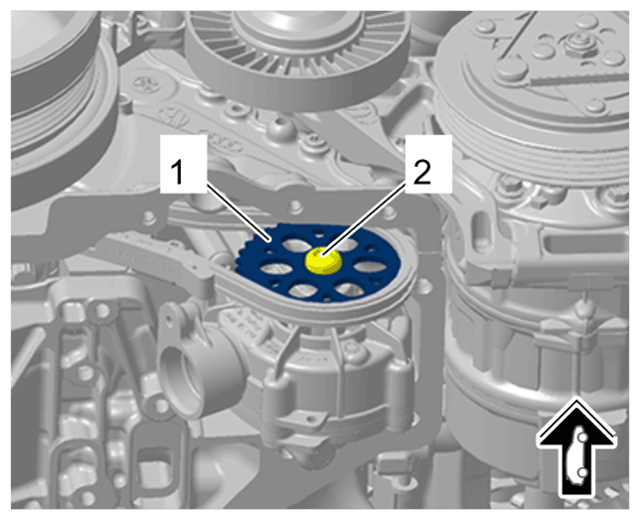

Oil pump sprocket

1. 2.1  Fit sprocket -1-  on the oil pump and screw in new  screw -2-  .
2. 2.2  Counter at the sprocket -1-  using > T10172A - counter-hold tool  and tighten screw -2-  .
   • Initial tightening 20 Nm (15 ftlb.)
   • Final tightening + 90°
