Removing Oil Level Sensor
WARNING: This page is about a different variant/trim than selected.

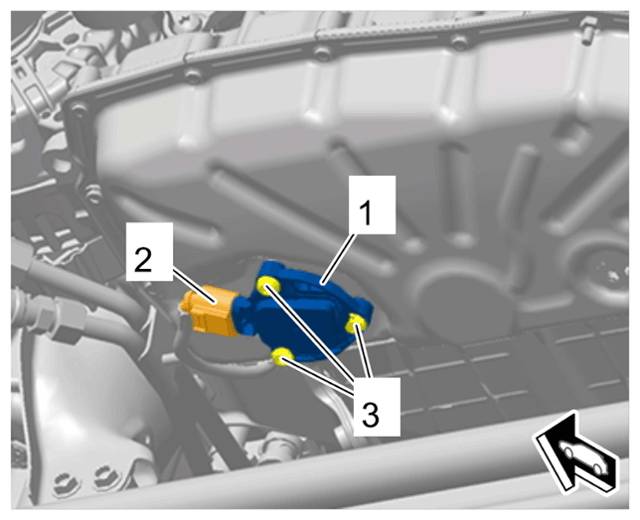

- Remove oil level sensor -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Oil level sensor
- 1.1
Release and disconnect electric plug connection -2-
.
- 1.2
Place a suitable collection container underneath to catch escaping oil.
- 1.3
Unscrew screws -3-
and pull off oil level sensor -1-
.
