Installing Oil Level Sensor
WARNING: This page is about a different variant/trim than selected.

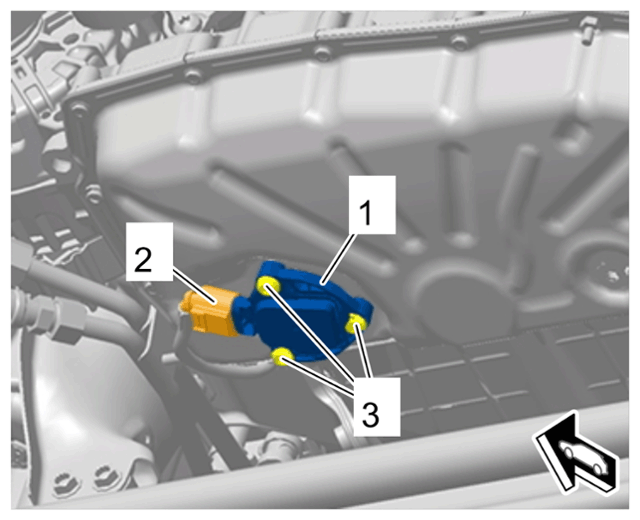

- Install oil level sensor -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Oil level sensor
- 1.1
Replace sealing ring on oil level sensor.
- 1.2
Replace screws for oil level sensor -3-
.
- 1.3
Screw in and tighten new
screws on oil level sensor -3-
.
- Tightening torque 9 Nm (6.5 ftlb.)
- 1.4
Connect and lock electric plug connection -2-
.
