Removing Oil Temperature Sender
WARNING: This page is about a different variant/trim than selected.

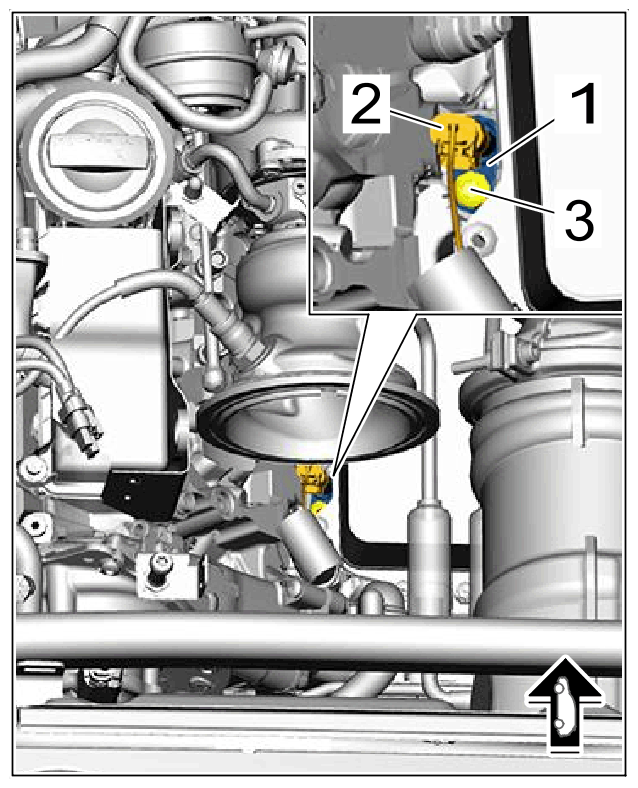

- Remove oil temperature sender -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Oil temperature sender
- 1.1
Release and disconnect electric plug connection -2-
.
- 1.2
Unscrew screws -3-
.
- 1.3
Remove oil temperature sender -1-
.
- 1.4
Close the open connection with plugs.
