Installing Oil Temperature Sender
WARNING: This page is about a different variant/trim than selected.
- install oil temperature sender -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

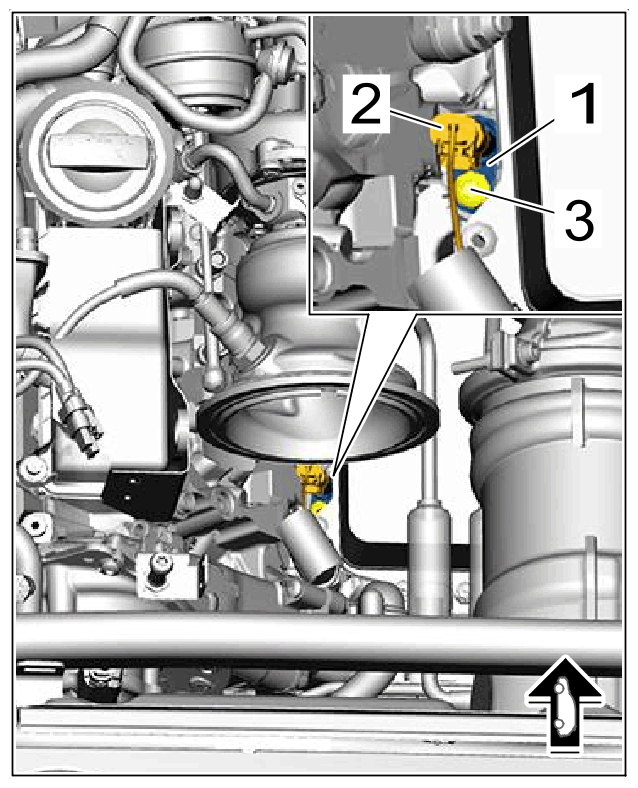

Oil temperature sender
- 1.1
insert oil temperature sender -1-
with new
sealing rings.
- 1.2
Screw in and tighten screw -3-
.
- Tightening torque 9 Nm (6.5 ftlb.)
- 1.3
Connect and lock electric plug connection -2-
.
