Removing Oil Pressure Switch

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    1. → Let the fluid cool down.
    2. → Wear personal protective gear.
  1. Pull heat protection -1-  up to expose the electric plug connection -2-  .

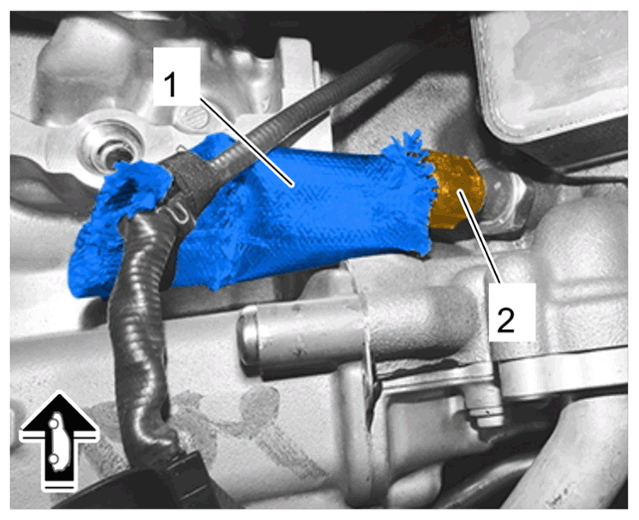

    G15145855Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat protection

  2. Release and disconnect electric plug connection -1-  at the oil pressure switch -2-  .

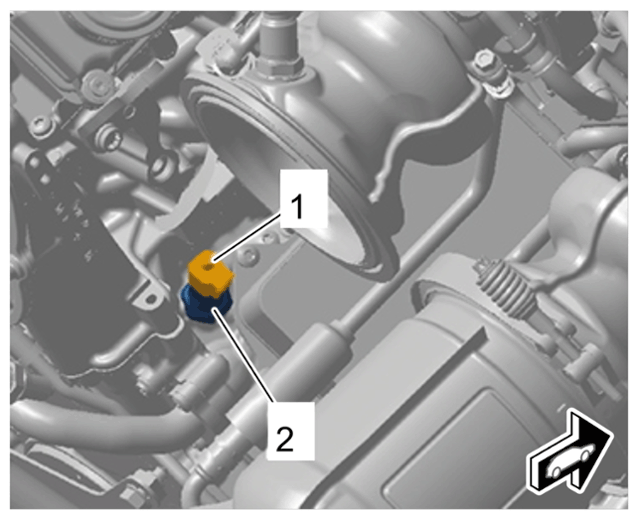

    G15145856Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for oil pressure switch

  3. Remove oil pressure switch -1-  .

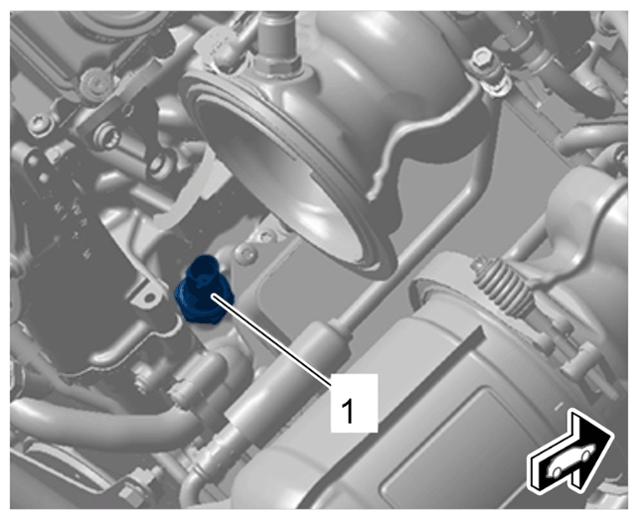

    G15145857Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil pressure switch

    1. 3.1  Unscrew oil pressure switch -1-  using > T40175 - articulated wrench  .
    2. 3.2  Collect emerging engine oil.
