Removing Pulley
WARNING: This page is about a different variant/trim than selected.
Information
The pictures shown in this document may differ from the original.

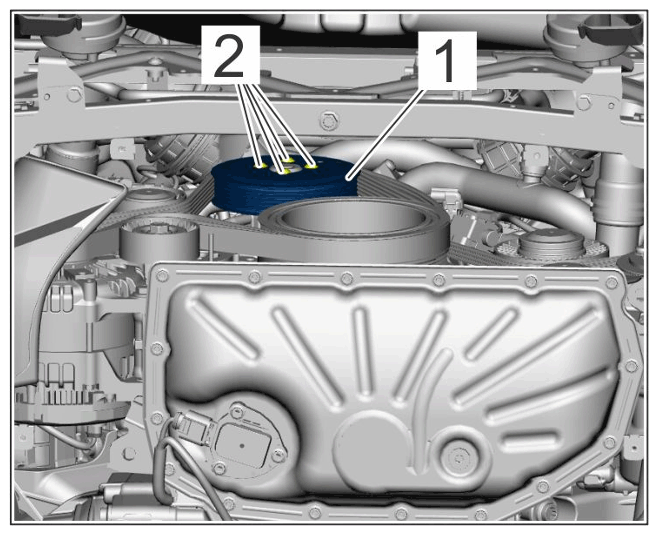

- Loosen pulley -1-
.
- 1.1
Only loosen screws -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulley
- Loosen the generator drive belt.
- Remove pulley -1-
.
- 3.1
Remove screws -2-
.
- 3.2
Remove pulley -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulley
