Removing Coolant Reservoir

WARNING: This page is about a different variant/trim than selected.

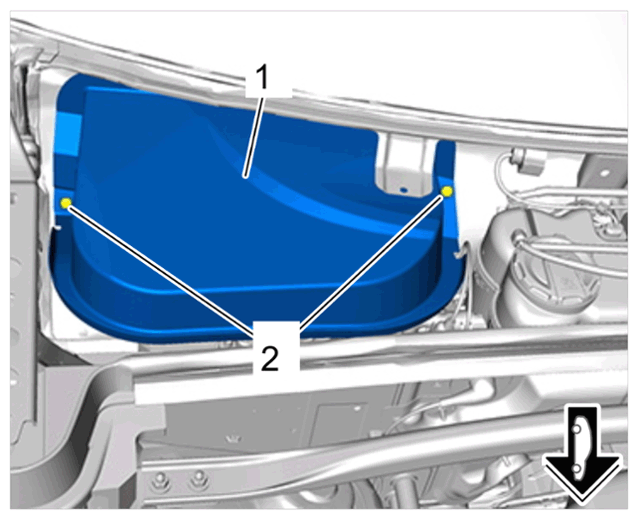

Remove air inlet housing cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air inlet housing cover
1. 1.1 Unscrew nuts -2- .
2. 1.2 Remove air inlet housing cover -1- .

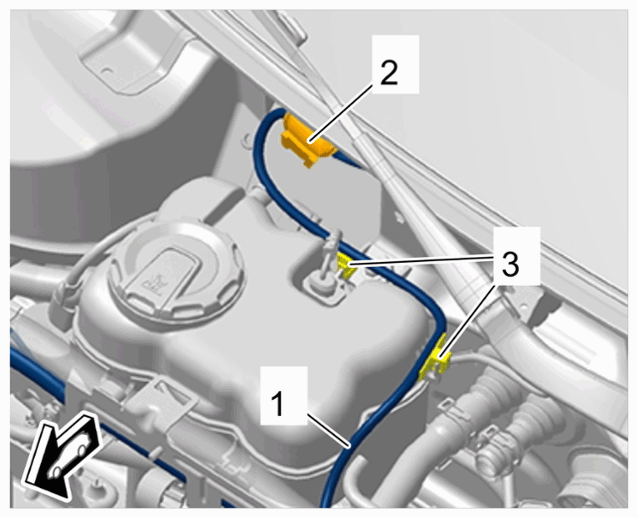

Disconnect electric line -1- from coolant reservoir.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line at coolant reservoir
1. 2.1 Release and disconnect electric plug connection -2- .
2. 2.2 Unclip clips -3- .

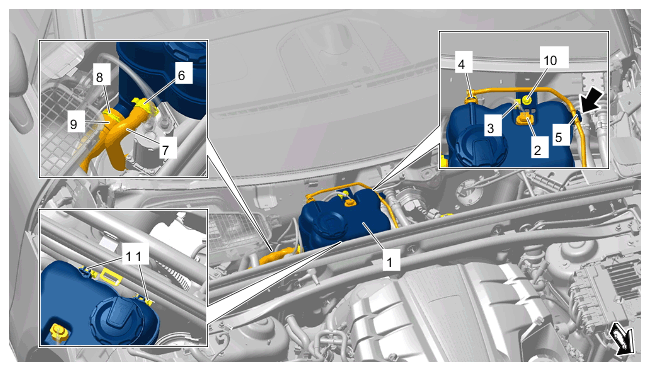

Remove coolant reservoir -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant reservoir
1. 3.1 Release and disconnect electric plug connection -2- .
2. 3.2 Unclip clip -3- .
3. 3.3 Release and disconnect quick connector -4- .
4. 3.4 Unclip vent line -5- from coolant reservoir -Arrow- .
5. 3.5 Loosen spring band clamp -6- using > VAS 6890 - spring band clamp pliers and pull off coolant hose -7- .
  1. 3.5.1 Soak up any emerging coolant using suitable aids.
  2. 3.5.2 Close off connection openings using suitable stoppers.
6. 3.6 Lift up retaining clip -8- and pull off coolant hose -9- .
  1. 3.6.1 Soak up any emerging coolant using suitable aids.
  2. 3.6.2 Close off connection openings using suitable stoppers.
7. 3.7 Unscrew screw -10- .
8. 3.8 Pull coolant reservoir -1- up out of the holders -11- .
