Installing Cooling-Air Flaps

1. 1.1  Tighten screws -2-  .
   • Tightening torque 2.5 Nm (1.75 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for lock carrier

2. 1.2  Tighten screws -1-  .
   • Tightening torque 9.7 Nm (7.2 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

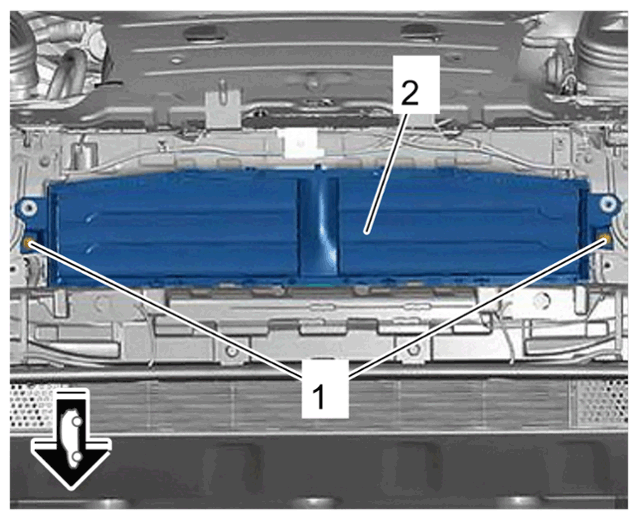

   Cooling-air flaps

   1.3 Only for vehicles with distance measuring sensor:

   Tighten screws -2-  .

   • Tightening torque 2.5 Nm (1.75 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

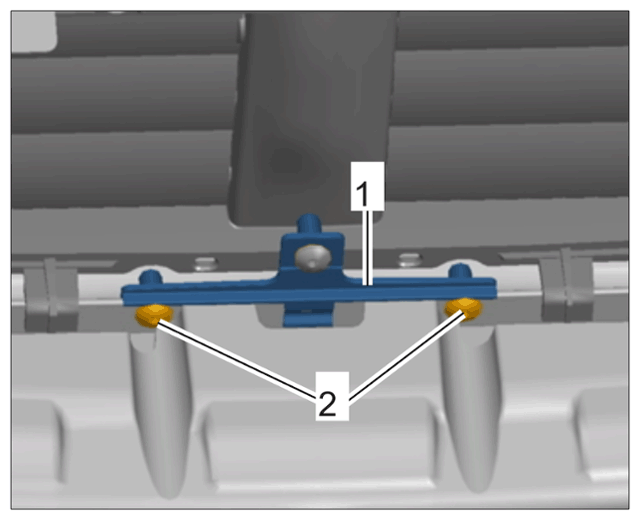

Distance measuring sensor holder
