Removing Cooling Fan Housing
WARNING: This page is about a different variant/trim than selected.

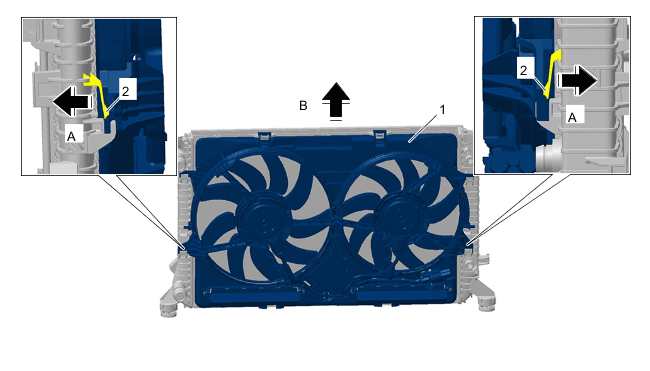

- Remove cooling fan housing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cooling fan housing
- 1.1
Release locking lugs -2-
on both sides using a screwdriver -arrow A-
, lift the cooling fan housing -1-
up out of the guides -arrow B-
and remove it from the radiator.
