Remove Heat Shields On Longitudinal Member

WARNING: This page is about a different variant/trim than selected.
  1. Un -2-  clip clips and remove heat shield on longitudinal member -1-  .

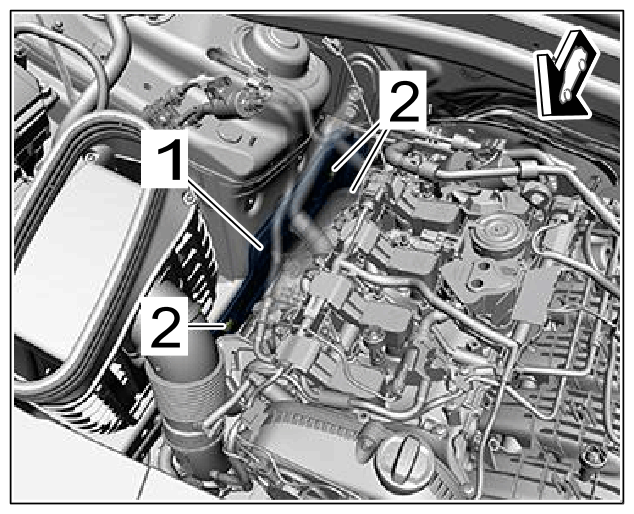

G15151544Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on left longitudinal member
