Removing Heat Shield
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- → Let hot components cool down
- → Wear personal protective gear.

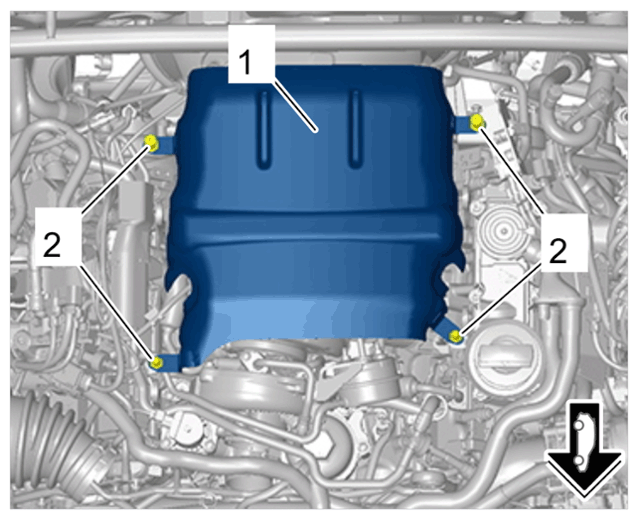

- Remove heat shield -1-
.
- 1.1
Unscrew ball pin -2-
.
- 1.2
Remove heat shield -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Heat shield
