Installing Heat Shield
WARNING: This page is about a different variant/trim than selected.

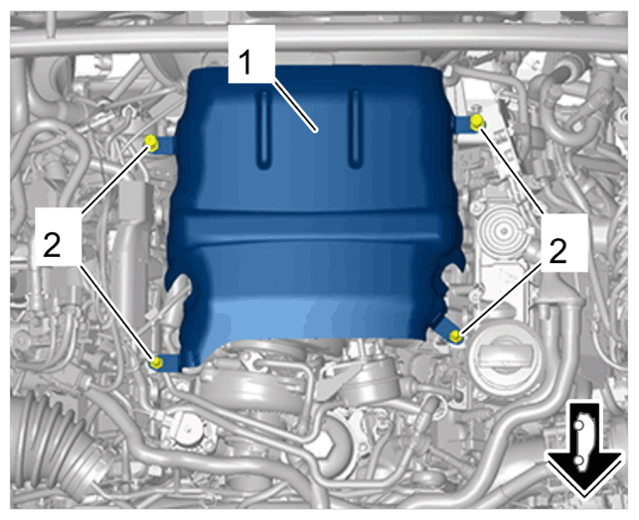

- Install heat shield -1-
.
- 1.1
Fit heat shield -1-
.
- 1.2
Screw in and tighten ball pin -2-
.
- Tightening torque 5 Nm (3.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Heat shield
