Removing Exhaust System

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

CAUTION: Heavy components

Risk of squashing
1. → Wear personal protective gear.
2. → Get someone to help if necessary.

Secure the exhaust system -1- using > VAS 6931 - engine and gearbox jack-2- .
1. 1.1 Position > VAS 6931 - engine and gearbox jack-2- under the exhaust system -1- in such a way that both pipes can be supported at the same time.
2. 1.2 Guide tension strap around both pipes and secure it.
3. 1.3 Raise the exhaust system -1- slightly.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

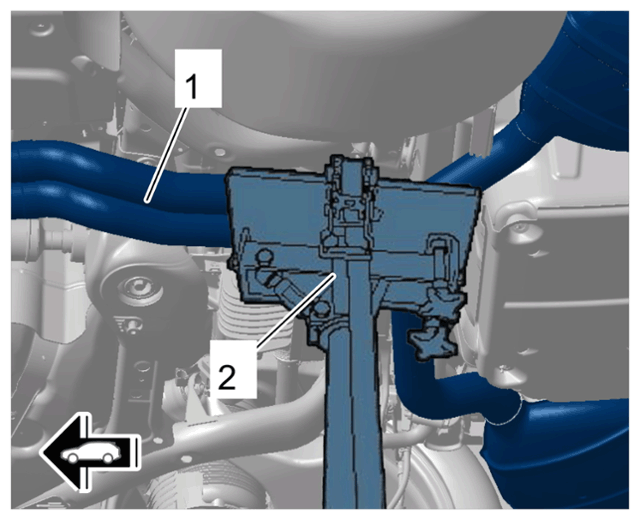

Exhaust system on VAS 6931 engine and gearbox jack (similar to illustration)
Loosen exhaust system -1- .
1. 2.1 Loosen nuts on clamp -3- and slide clamp -2- towards the exhaust system.
  1. 2.1.1 Replacing clamp
2. 2.2 Unscrew nuts -4 and 5- .
3. 2.3 Unscrew screws -6- .
4. 2.4 Release and disconnect electric plug connection -7- and pull it off the servo motor for flap control -8- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

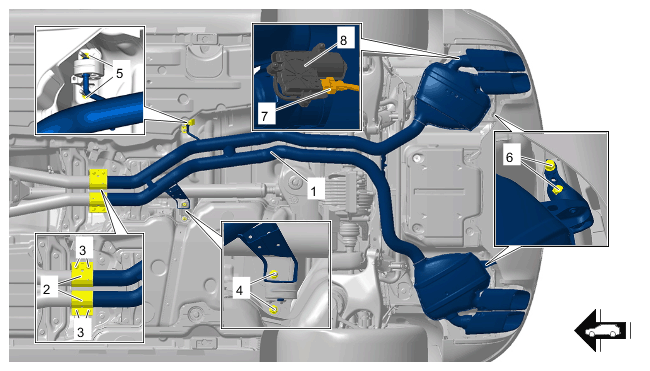

Exhaust system
Remove exhaust system -1- .
1. 3.1 Guide the exhaust system -Arrows- , which is secured with a tension strap -1- , downwards using the > VAS 6931 -engine and gearbox jack .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

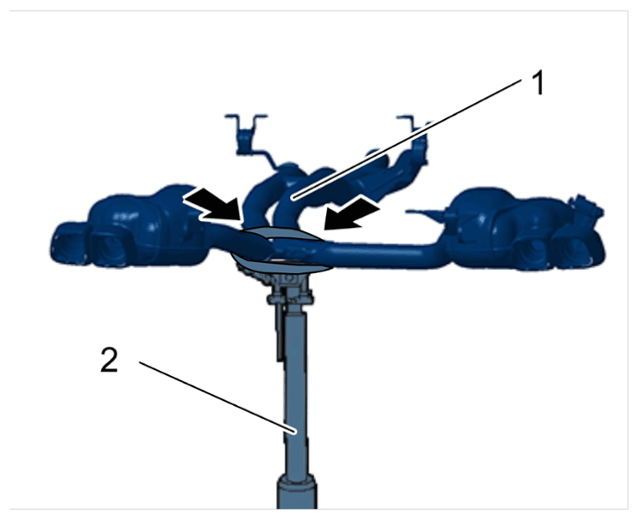

Exhaust system on VAS 6931 engine and gearbox jack (similar to illustration)
