Removing Hall-Sender Rotor

WARNING: This page is about a different variant/trim than selected.

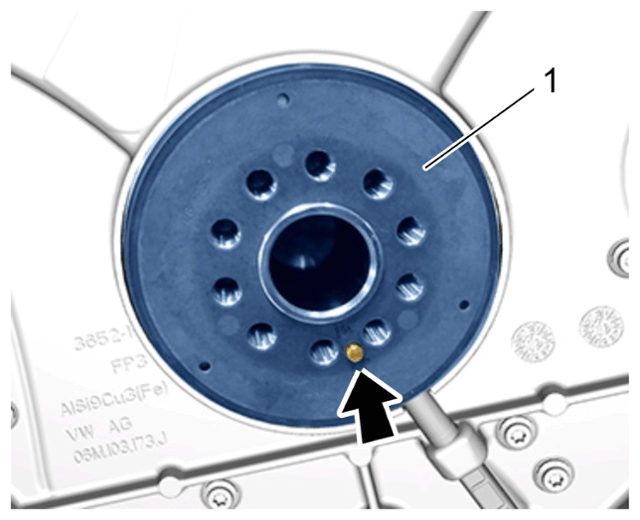

  1. Remove hall-sender rotor -1-  from the crankshaft flange.
G15151682Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hall-sender rotor
