Removing Camshaft Sensor (Outlet Camshafts)

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down
2. → Wear personal protective gear.

Remove camshaft sensor -1- .
1. 1.1 Release and disconnect electric plug connection -2- .
2. 1.2 Unscrew screw -3- .
  1. 1.2.1 At the camshaft sensor of the exhaust camshaft cylinder bank 2, the thermal insulation must also be lifted.
3. 1.3 Remove camshaft sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

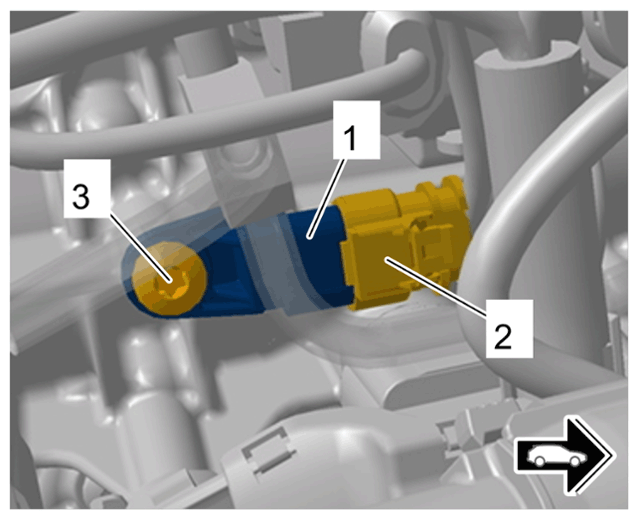

Camshaft sensor for outlet camshafts
