Installing Ignition Coils (Right Cylinder Bank)

1. Install ignition coils -1-  .
   1. 1.1  Insert ignition coils -1-  .
   2. 1.2  Screw in and tighten screws on ignition coils -2-  .
      • Tightening torque 9 Nm (6.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

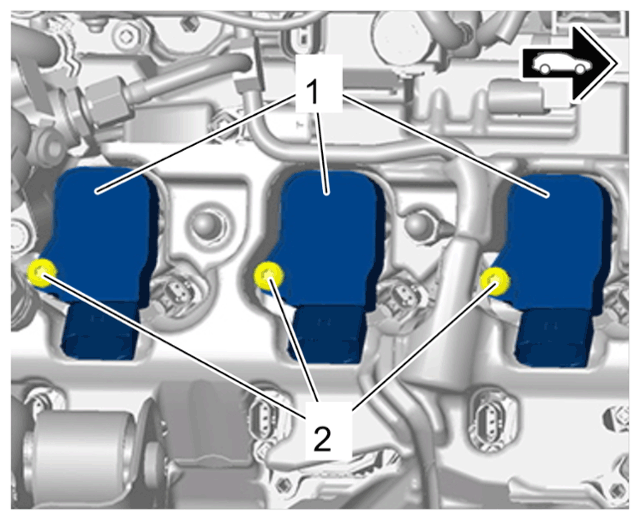

   Ignition coils on right cylinder bank

2. Only when removing ignition coils for cylinder 2 or 3:

   Secure cable duct -1-  .

   1. 2.1  Fit cable duct -1-  on the ball pin.
   2. 2.2  Clip line -2-  into cable duct -1-  .
   3. 2.3  Connect and lock cable plug -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

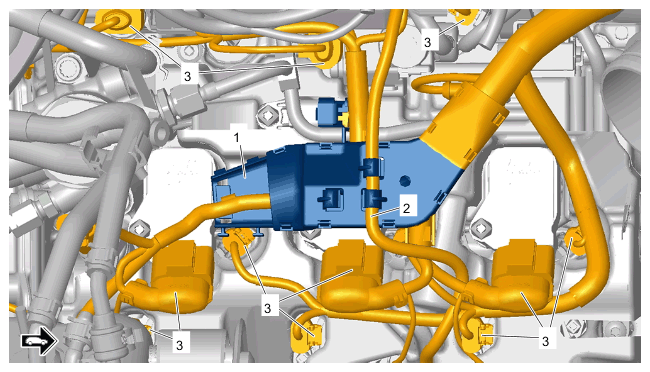

   Cable duct for engine wire harness, right

3. Only when removing ignition coils for cylinder 2 or 3:

   Install torque support bracket -1-  .

   1. 3.1  Fit torque support bracket -1-  .
   2. 3.2  Screw in and tighten screws -2 and 3-  .

      Screw -2-  :

      • Tightening torque 20 Nm (15 ftlb.)

        Screw -3-  :

      • Tightening torque 55 Nm (41 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

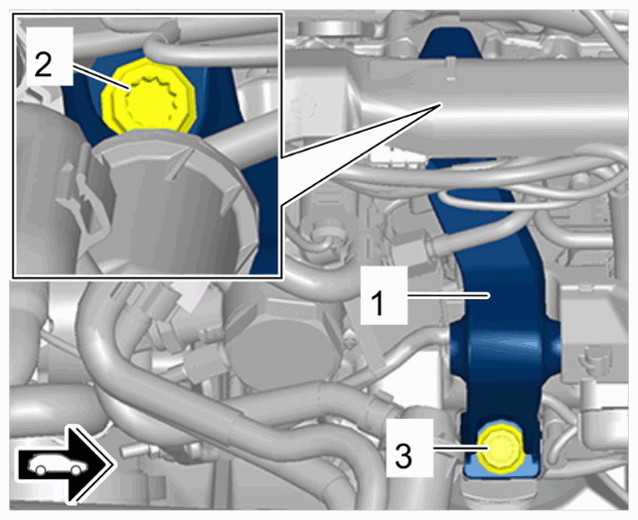

Torque support bracket
