Installing Fuel Line: Notes

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1  Coat the thread of the union nuts -2 and 3-  with Microgleit DF 977S and leave to dry off for at least 5 minutes.
   2. 1.2  Tighten screws on fuel line holder -4-  .
      • tightening torque 8 Nm (5.9 ftlb.)
      • final tightening torque 45°
   3. 1.3  Tighten union nuts -2 and 3-  using > T40055 - socket-wrench insert  .
      • tightening torque of 10 Nm (7.4 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

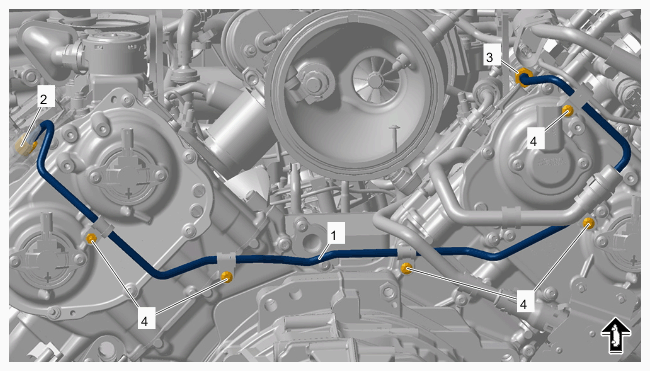

      Fuel line - V6 monoturbo

   4. 1.4  Replace O-rings on coolant pipe.
   5. 1.5  Tighten screws -2-  .
      • Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

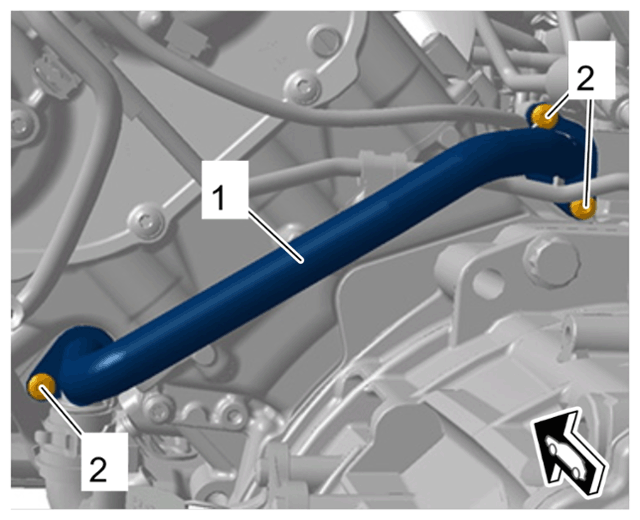

Coolant pipe
