Installing Fuel Line (High-Pressure, Right)

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1  Coat thread on union nuts -2 and 3-  with Microgleit DF 977S. Observe a drying time of at least 5 minutes before fitting.
   2. 1.2  Screw in and tighten screw -4-  .
      • Tightening torque 9 Nm (6.6 ftlb.)
   3. 1.3  Tighten union nuts -2 and 3-  using > V.A.G 1331/6 - Open-jawed wrench insert, a/f 17  .
      • tightening torque of 10 Nm (7.4 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Installing fuel line

   4. 1.4  Tighten screws on torque support bracket -2-  .
      • Tightening torque 20 Nm (15 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

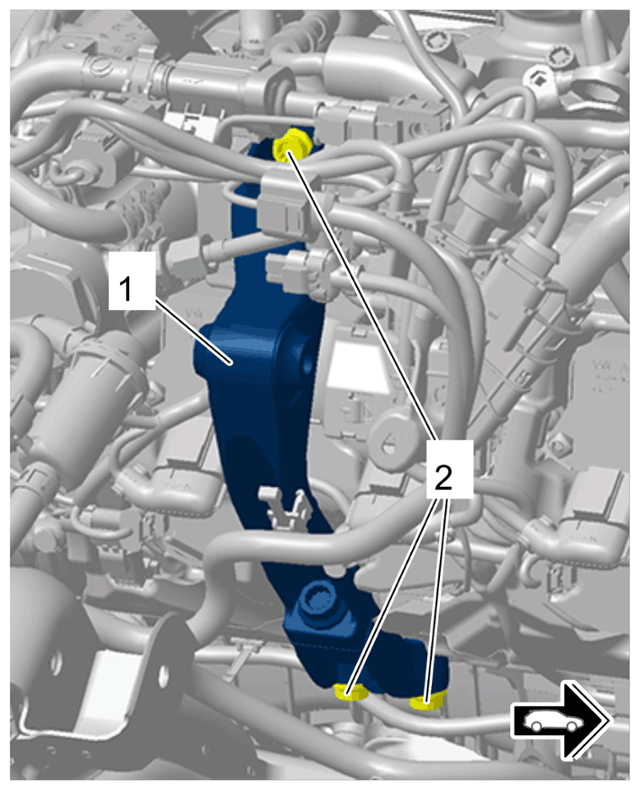

Torque support bracket
