Removing Intake-Air Distributor

WARNING: This page is about a different variant/trim than selected.

Remove line bracket -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

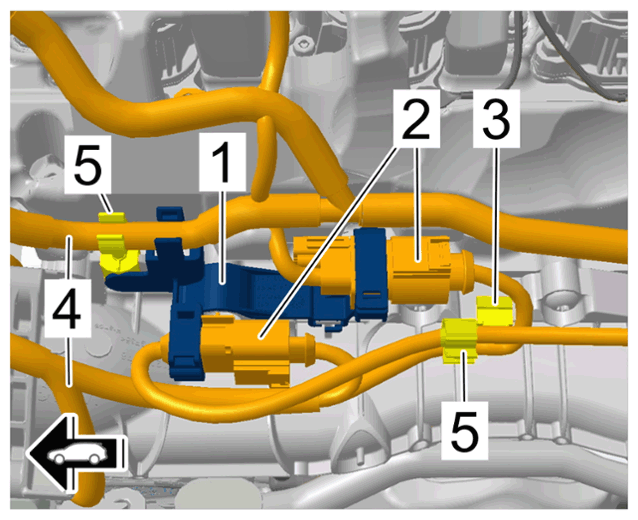

Line bracket
1. 1.1 Release and disconnect electric plug connections -2- .
2. 1.2 Unclip clip -3- .
3. 1.3 Unclip electric wiring harness -4- from clips -5- .
4. 1.4 Remove line bracket -1- .
Remove intake-air distributor -11- .

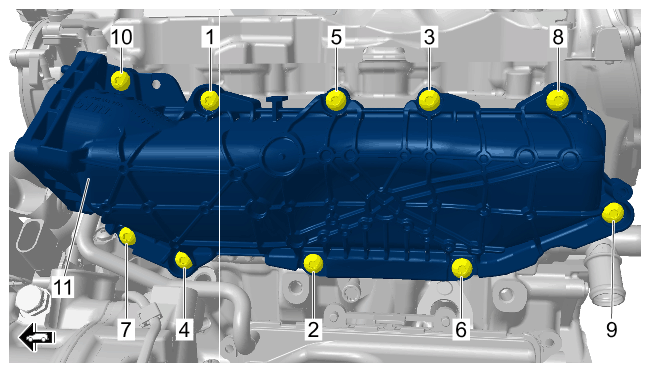

Fig 1: Intake-Air Distributor Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake-air distributor
1. 2.1 Unscrew screws in the sequence -10 to 1- .
2. 2.2 Remove intake-air distributor -11- .
