Installing Intake-Air Distributor

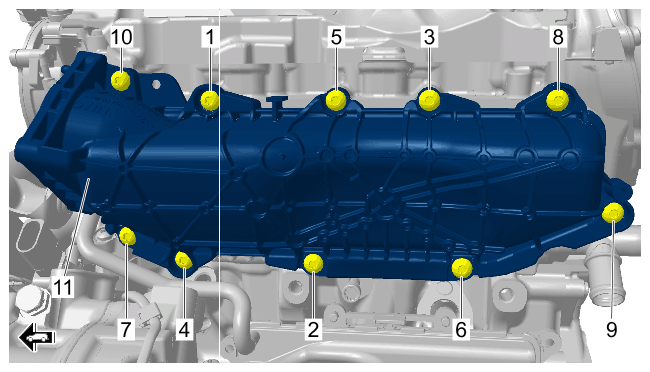

Fig 1: Intake-Air Distributor Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake-air distributor

1. 1.1  Check intake-air distributor seal for damage and replace it if necessary.
2. 1.2  Position intake-air distributor -11-  .
3. 1.3  Tighten screws in the sequence -1 to 10-  .
   • Initial tightening 8 Nm (6 ftlb.)
   • Final tightening + 45°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

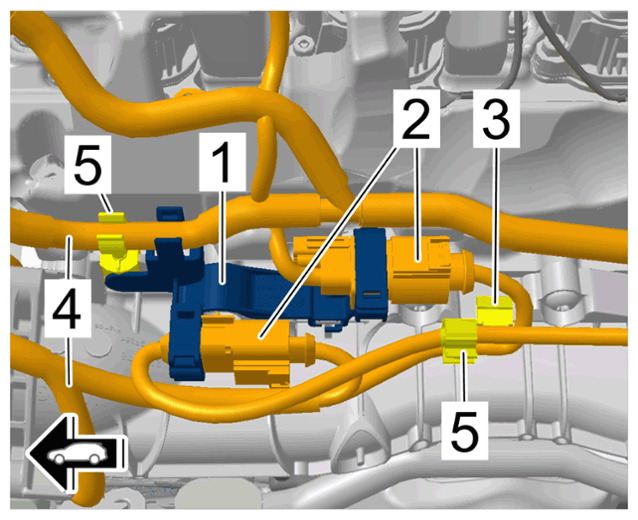

Line bracket

1. 2.1  Clip in line bracket -1-  .
2. 2.2  Connect and lock electric plug connections -2-  .
3. 2.3  Clip in clip -3-  .
4. 2.4  Clip electric wiring harness -4-  into clips -5-  .
