Installing Air Cleaner Housing
WARNING: This page is about a different variant/trim than selected.
- Install air cleaner housing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

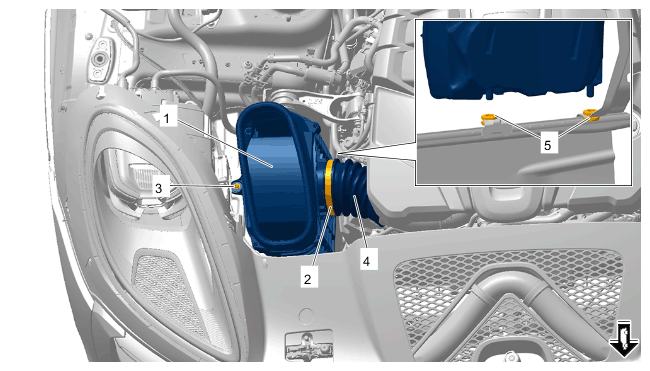

Air cleaner housing
- 1.1
Position air cleaner housing -1-
in the guides -5-
.
- 1.2
Push on intake manifold -4-
.
- 1.3
Fit and tighten screw -3-
.
- Tightening torque 3.5 Nm (2.5 ftlb.)
- 1.4
Position and tighten screw-type clamp -2-
.
- Tightening torque 4 Nm (3 ftlb.)
