Installing Air-Cleaner Element

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

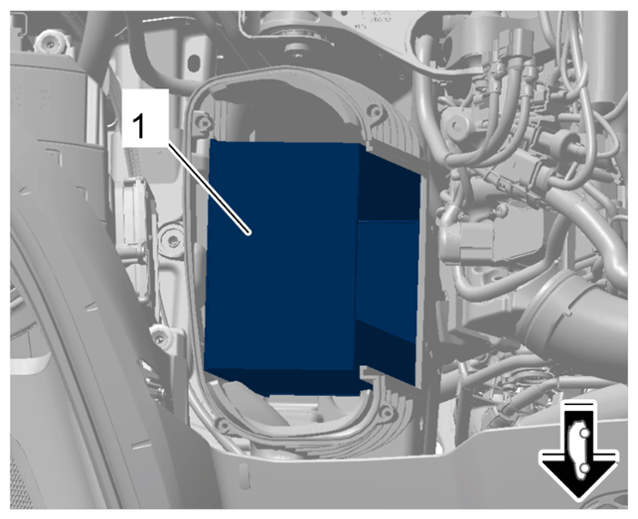

Air-cleaner element

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

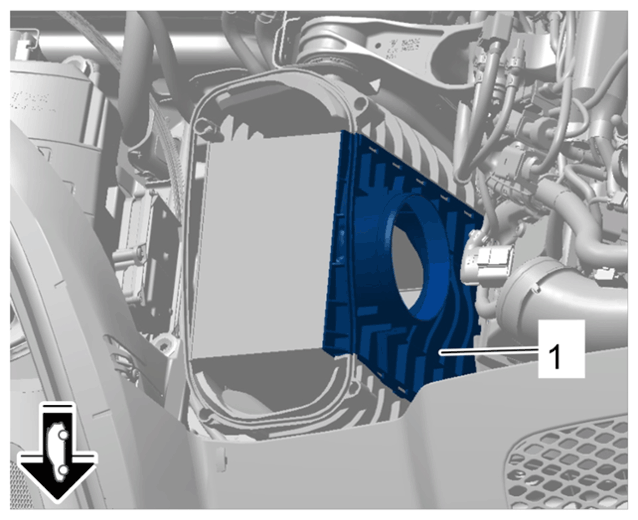

Filter cover

1. 2.1  Install filter cover for air cleaner housing -1-  and check that it is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

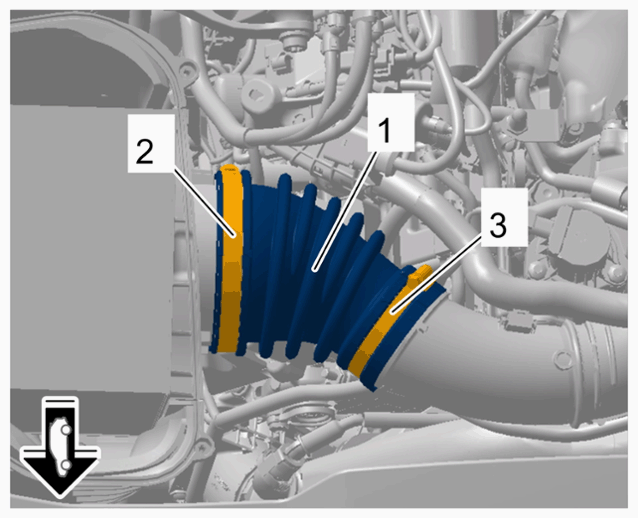

Intake pipe

1. 3.1  Position intake pipe -1-  .
2. 3.2  Tighten screw-type hose clamp -2-  .
   • Tightening torque 4 Nm (3 ftlb.)
3. 3.3  Tighten screw-type hose clamp -3-  .
   • Tightening torque 5.5 Nm (4 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

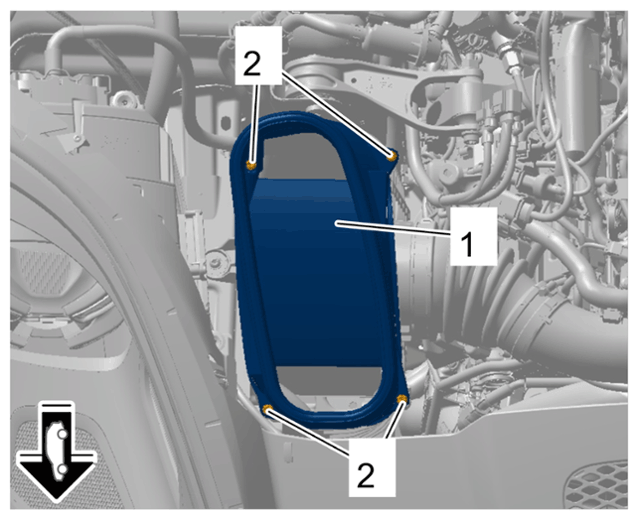

Upper part of air cleaner housing

1. 4.1  Position upper part of air cleaner housing -1-  .
2. 4.2  Fit and tighten screws -2-  .
   • Tightening torque 3.5 Nm (2.5 ftlb.)
