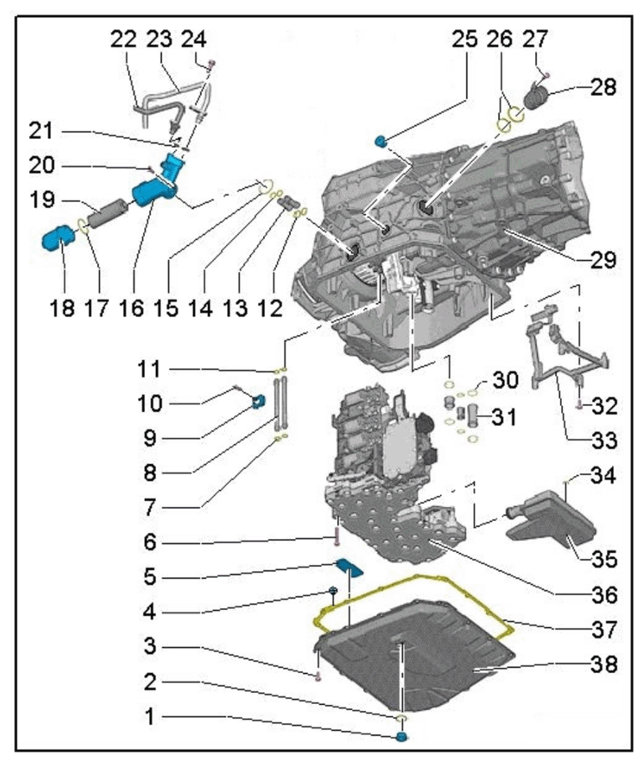

Mechatronics
| 1 | ATF drain plug |
| 2 | Sealing ring /replace |
| 3 | Screw |
| 4 | Expansion rivet In original equipment for securing seal to ATF oil pan Not absolutely necessary for installation |
| 5 | Magnet Clean magnet when changing ATF |
| 6 | Screw |
| 7 | O-rings /replace |
| 8 | ATF pressure pipes |
| 9 | Retaining bracket for ATF pressure pipes |
| 10 | Screw |
| 11 | O-rings /replace |
| 12 | O-rings /replace |
| 13 | ATF oil pipes |
| 14 | O-rings /replace |
| 15 | O-ring /replace |
| 16 | ATF filter housing |
| 17 | O-ring /replace |
| 18 | ATF filter housing cover |
| 19 | ATF spin-on filter |
| 20 | Screw |
| 21 | O-rings /replace |
| 22 | ATF return line |
| 23 | ATF supply line |
| 24 | Screw |
| 25 | ATF filler screw and inspection plug |
| 26 | O-rings /not available individually |
| 27 | Screw |
| 28 | Connector housing with O-rings |
| 29 | Transmission housing |
| 30 | O-rings /not available individually |
| 31 | ATF oil pipes with O-rings |
| 32 | Screw |
| 33 | Cable guide for rpm sensors |
| 34 | O-ring /replace |
| 35 | ATF suction filter |
