Installing Sealing Ring For Output Shaft Sealing Ring

WARNING: This page is about a different variant/trim than selected.
  1. Fit > 9884 - sleeve-1-  on the output shaft -2-  and push sealing ring -3-  onto the sleeve

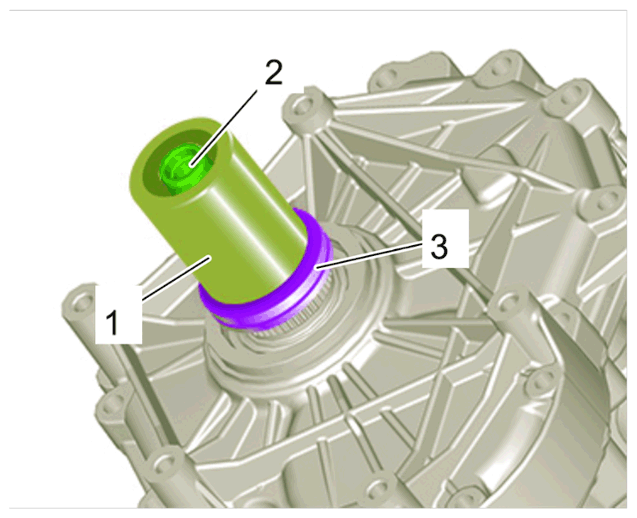

    G15152511Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sleeve 9884 with sealing ring

  2. Fit sealing ring.
    1. 2.1  Push > 9884/1 - pressure piece  on to > 9884 - sleeve  and output shaft.
    2. 2.2  Using > 9884/1 - pressure piece-1-  , press sealing ring up to anchor block -1-  on cover -2-  .

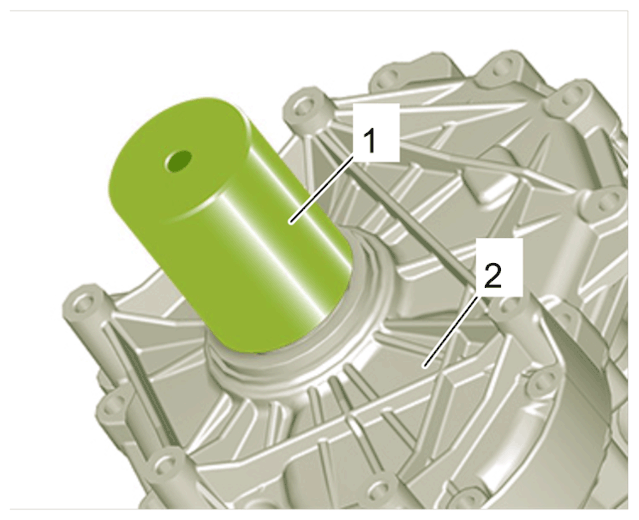

    G15152512Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure piece 9884/1

  3. Remove pressure piece and sleeve.
