Installing Sealing Ring For Front Output Shaft

WARNING: This page is about a different variant/trim than selected.

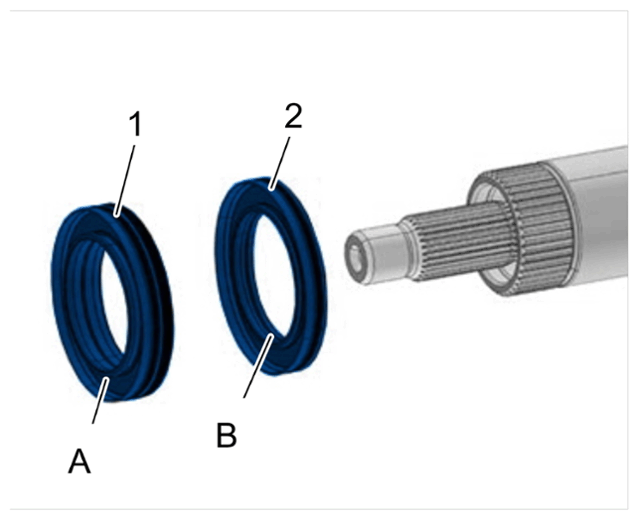

  1. Clip together new sealing rings -1 and 2-  .
    G15152506Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Outer and inner sealing ring

    1. 1.1  Spiral spring -A-  of the outer sealing ring -1-  must be pointing towards the PDK transmission.
    2. 1.2  Spiral spring -B-  of the inner sealing ring -2-  must be pointing towards the transmission.
    3. 1.3  Clip together outer and inner sealing ring -1 and 2-  .

    Information

    • T40260 - Press-in tool  can be extended using > VW415A - Tube  .

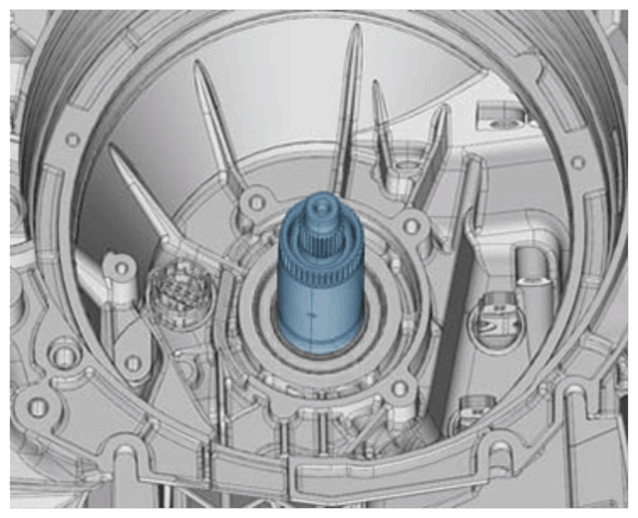

  2. Install new  sealing rings using the > T40260 - press-in tool  . > Press-in tool
    G15152507Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Press-in tool
