Installing Sealing Ring For Double Clutch
WARNING: This page is about a different variant/trim than selected.

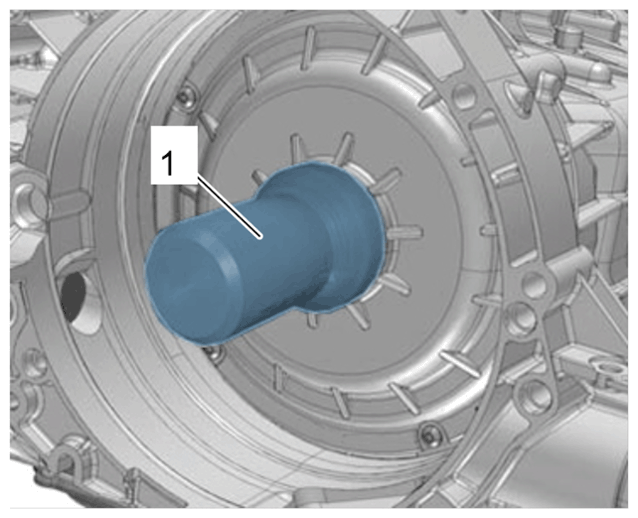

- Fit guide sleeve -1-
from the tool set >
T40198 - assembly fixture
.
Guide sleeve
Information
- New radial shaft seal must be coated lightly on the external circumference with oil.
- The space between the sealing and dust lips on the new radial shaft seal must be half-filled with grease.
- The open side of the radial seal shaft must be facing the transmission.
- Fit new sealing ring for double-clutch on guide sleeve.
Information
- The pressure piece must not be tipped when tapping in the radial shaft seal.

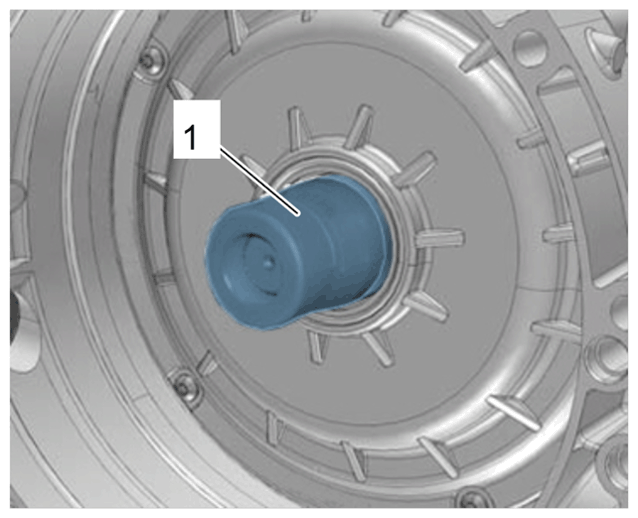

- Drive in the sealing ring for double-clutch using pressure piece -1-
from tool set >
T40198 - Assembly fixture
drive it in.
Pressure piece
