Removing ATF Cooling Line (Front Section)
WARNING: This page is about a different variant/trim than selected.
WARNING:
Working with ATF
- Possible danger of injury or damage (e.g. swollen hoses, skin irritation, danger of slipping, etc.)
- → Before lines are opened, place a cloth underneath them!
- → Components that come into contact with ATF must be cleaned IMMEDIATELY with water!
- → Take appropriate protective measures (protective clothing, safety goggles, oil binding material)
- → Collect emerging ATF!
WARNING:
Hot fluid
- Danger of scalding
- → Let the fluid cool down.
- → Wear personal protective gear.
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
- → Protect components from dirt and contamination.
- → Clean or replace dirty components.

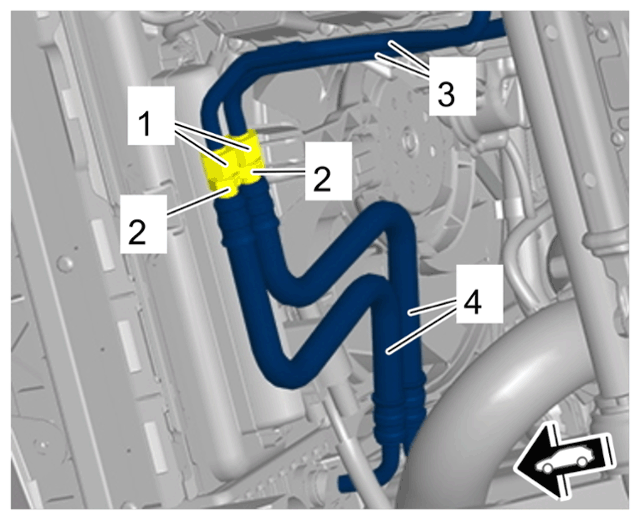

- Disconnect ATF cooling line connection point.
Connection point for ATF cooling line
- 1.1 Unscrew union nuts -1- and counter at the hexagon -2- at the same time.
- 1.2 Disconnect front and rear sections -3 and 4- from each other.
- 1.3 Catch escaping ATF and close off line connections using suitable stoppers.

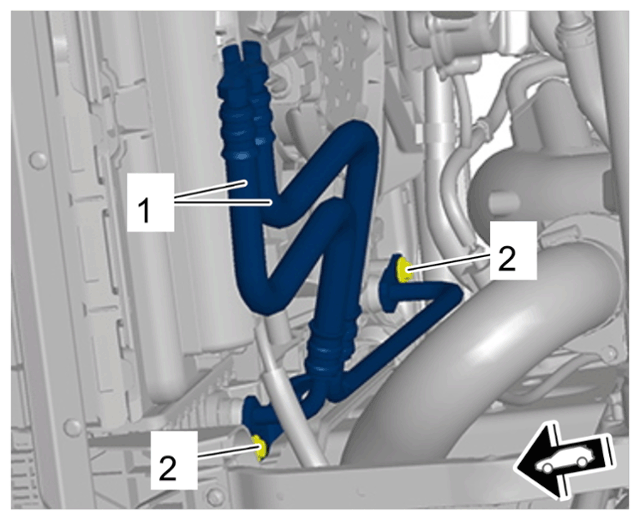

- Remove front section of ATF cooling line -1-
.
ATF cooling line - front section
- 2.1 Unscrew screws on ATF cooling line -2- .
- 2.2 Remove front section of the ATF cooling line -1- .
