Installing ATF Cooling Line (Front Section)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

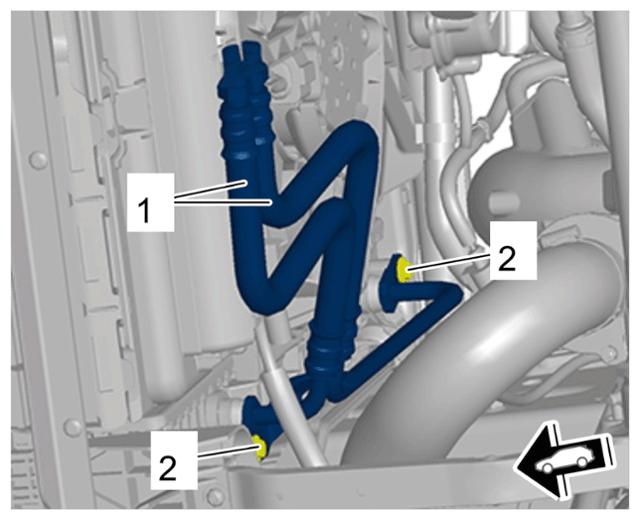

ATF cooling line - front section

1. 1.1  Position front section of the ATF cooling line -1-  .
2. 1.2  Screw in and tighten screws on ATF cooling line -2-  .
   • Tightening torque 5 Nm (3.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

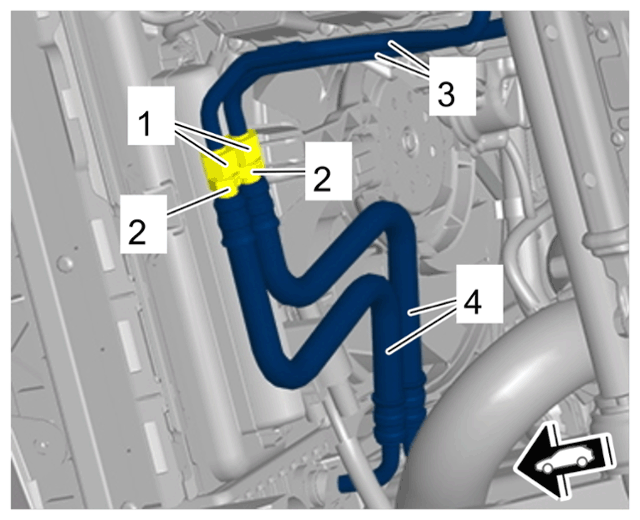

Connection point for ATF cooling line

1. 2.1  Remove stoppers from line connections.
2. 2.2  Join front and rear sections -3 and 4-  .
3. 2.3  Screw on union nuts -1-  and counter at the hexagon -2-  at the same time.
   • Tightening torque 29 Nm (21 ftlb.)
