Installing Wire Harness

WARNING: This page is about a different variant/trim than selected.

Installing wire harness -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

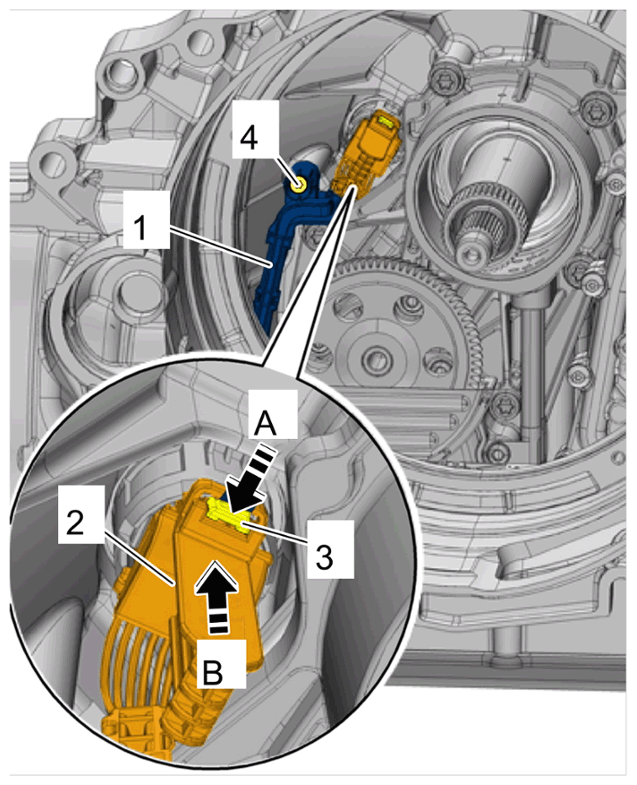

Electrical plug connections for wire harness
1. 1.1 Move wire harness -1- into Installation position.
2. 1.2 Connect electrical plug connections by moving them -2- in -direction of arrow B- and push locking mechanism -3- in -direction of arrow A- to lock electrical plug connections -2- .
3. 1.3 Tighten screw -4- .
  - Tightening torque 8 Nm (6 ftlb.)
Tighten the screws -1- .
- Tightening torque 8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

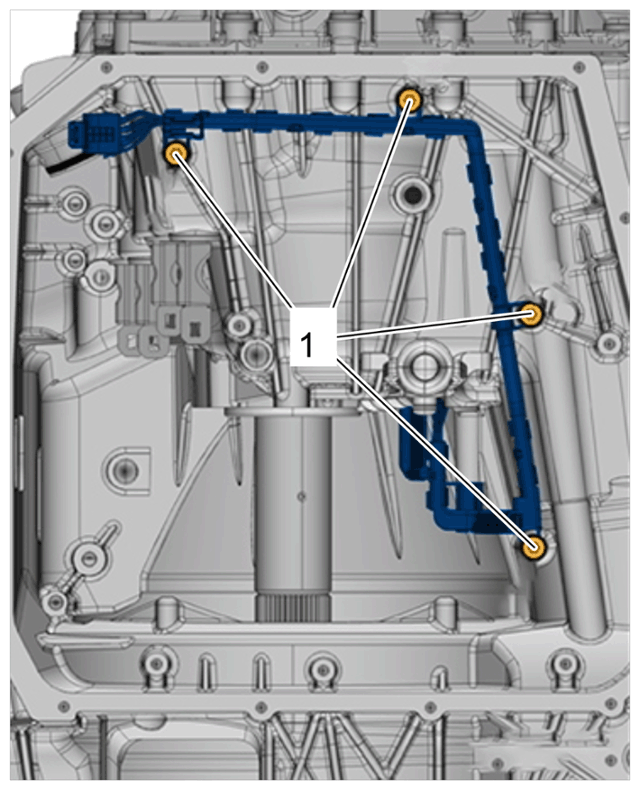

Upper screws securing wire harness
