Removing Drive Shaft Bearing

WARNING: This page is about a different variant/trim than selected.

Remove circlip -1- from the double clutch cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Circlip
1. 1.1 Replace circlip.
WARNING:
Mechanical, hydraulic or pneumatic press
- Risk of squashing
  1. → Read specific safety information for the press.
  2. → Check that the press is working perfectly before use, particularly the safety components.
Remove bearing from the double clutch cover.

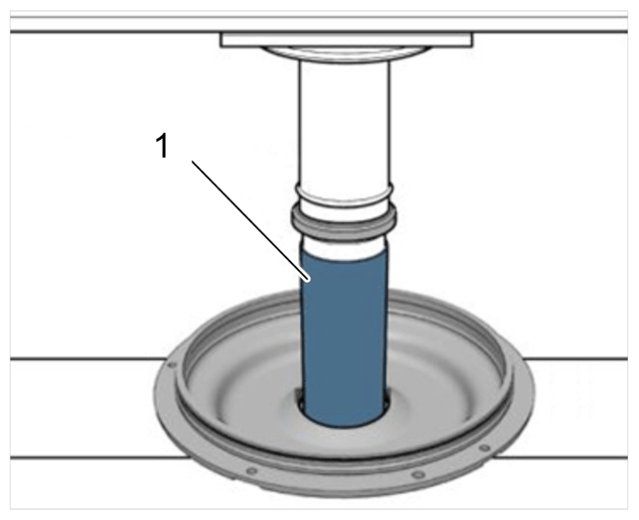

1. 2.1 Press out bearing using > VW415A - tube-1- .
2. 2.2 Replace bearing.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tubular piece

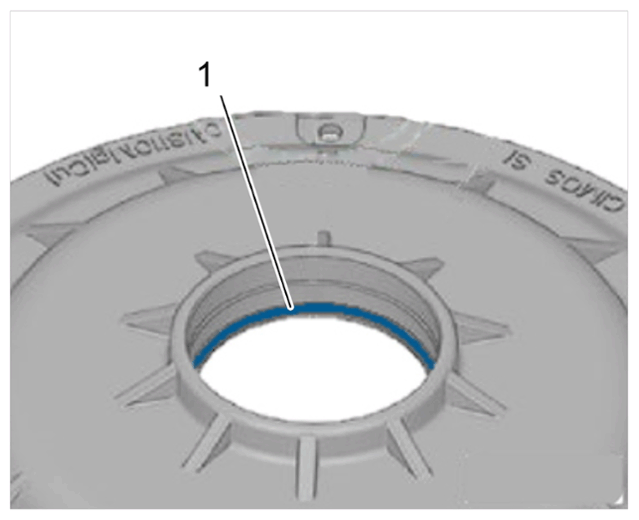

Remove thrust washer -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Thrust washer
1. 3.1 Replace thrust washer.
