Installing Tie Rod

WARNING: This page is about a different variant/trim than selected.

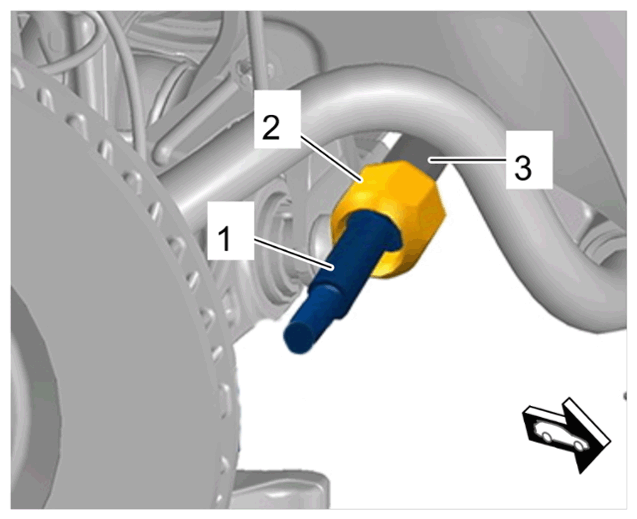

Install tie rod -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie rod ball joint
1. 1.1 Fit tie rod -1- and screw it as far as it will go into the rack-and-pinion -3- by hand.
2. 1.2 Tighten the octagon -2- using > V. A. G 1923 - open-end spanner insert, a/f 38 . Make sure not to damage the rack-and-pinion -3- .
  > Tightening - torque 100 Nm (74 ftlb.)
