Removing Steering-Gear Housing Bellows

Information

• Make sure that no dirt gets into the power-steering gear and bellows when removing and installing the bellows.

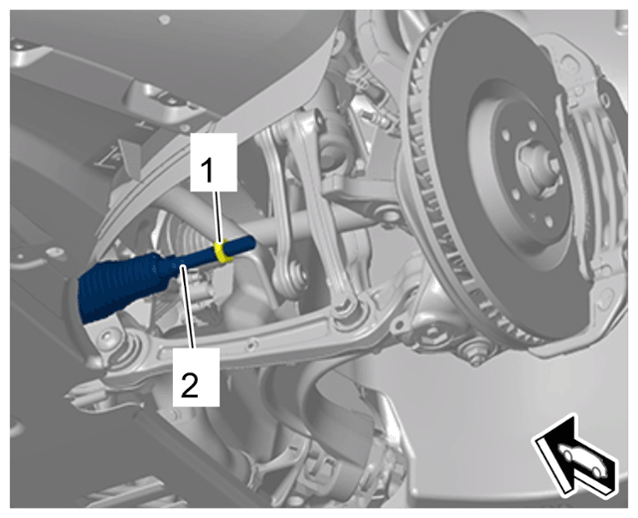

1. Unscrew lock nut for tie-rod ball -1-  from tie rod -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lock nut on tie-rod ball

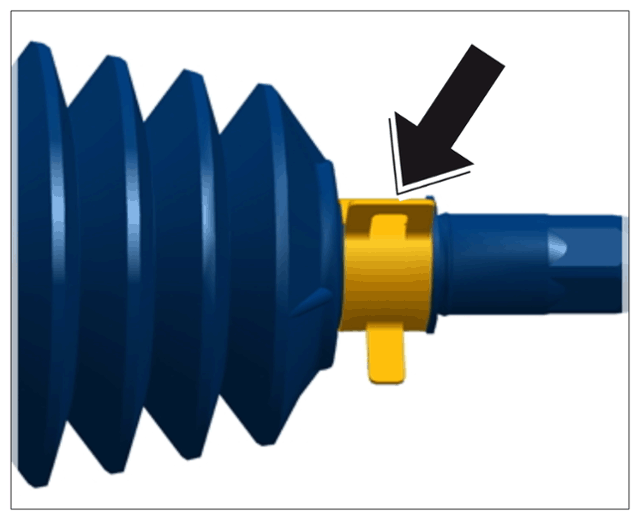

2. Loosen spring band clamp -Arrow-  using > VAS 6890 - spring band clamps pliers  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spring band clamp on steering-gear housing bellows

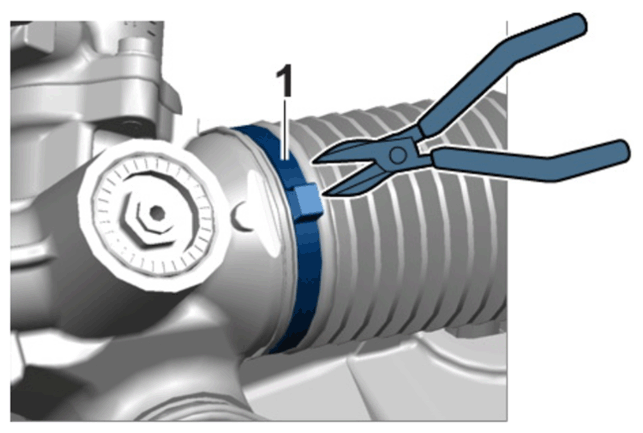

3. Open inner clamp -1-  using suitable pliers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clamp on steering-gear housing bellows

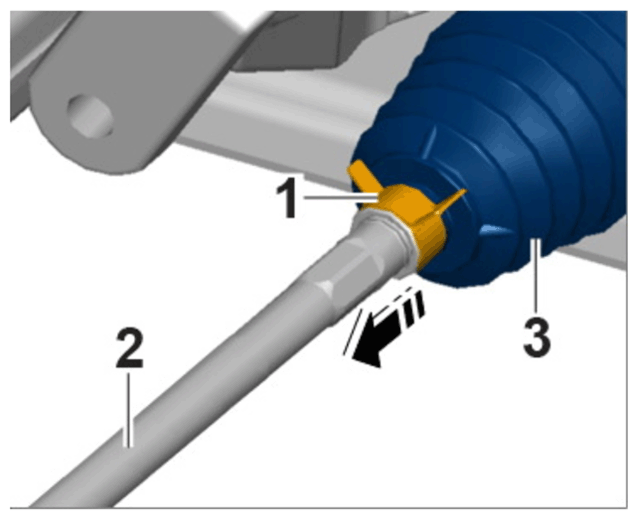

4. Pull steering-gear housing bellows -3-  together with the two clamps off the tie rod -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Steering-gear housing bellows
