Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
Screw securing control unit for steering column adjustment to holder Item 1 Tightening torque 2 Nm

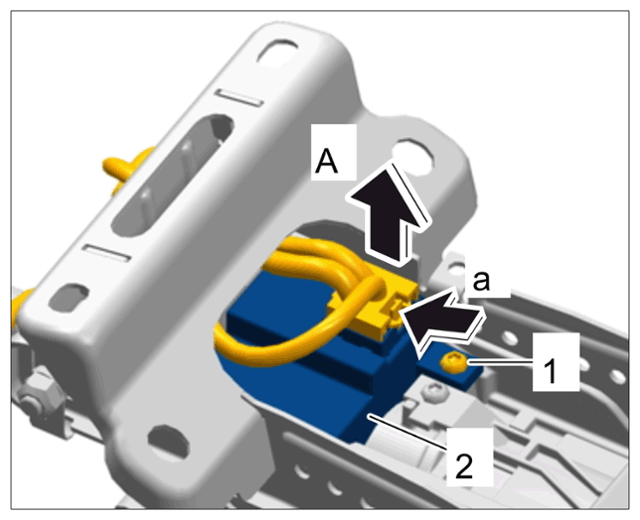

G15154459Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit for steering column adjustment
