Removing Height Adjustment Control Unit

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

  → Switch off electrical loads before disconnecting or removing them.

1. Release electric plug connection on height adjustment control unit -arrow a-  and disconnect it -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

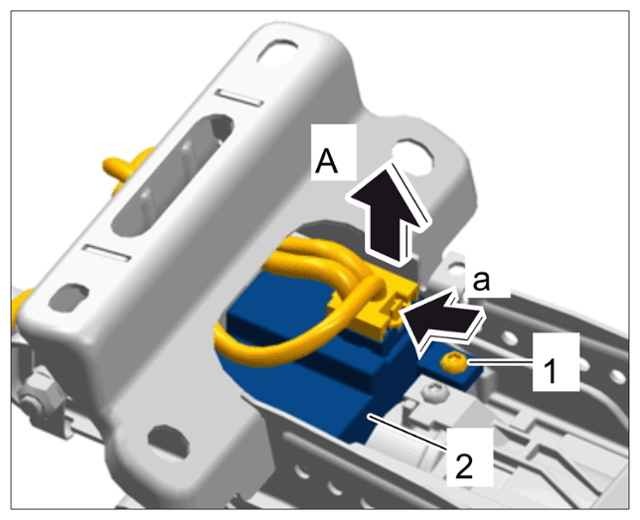

   Height adjustment control unit

   1. 1.1 Unscrew fastening screw -1-  .
   2. 1.2 Lift up height adjustment control unit -2-  and remove it.
