Removing Height Adjustment Switch

WARNING: This page is about a different variant/trim than selected.
  1. Loosen height adjustment switch -1-  from the steering column casing.

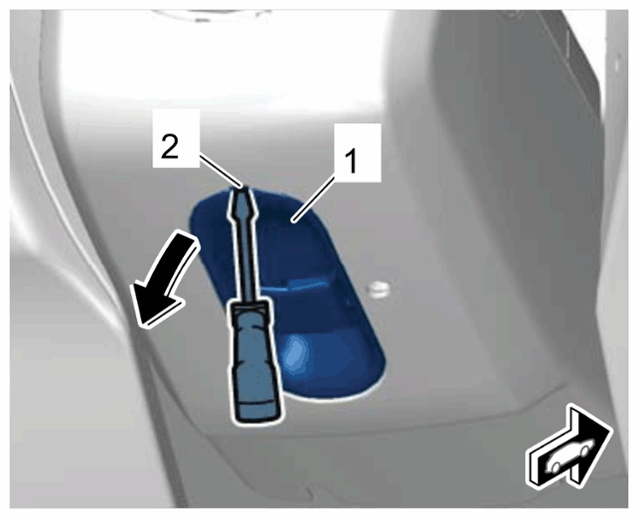

    G15154457Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Height adjustment switch

    1. 1.1 Insert a suitable flat screwdriver into slit -2-  , release the latch and guide the height adjustment switch -1-  out of the casing in -direction of arrow-  .
  2. Remove height adjustment switch -1-  .

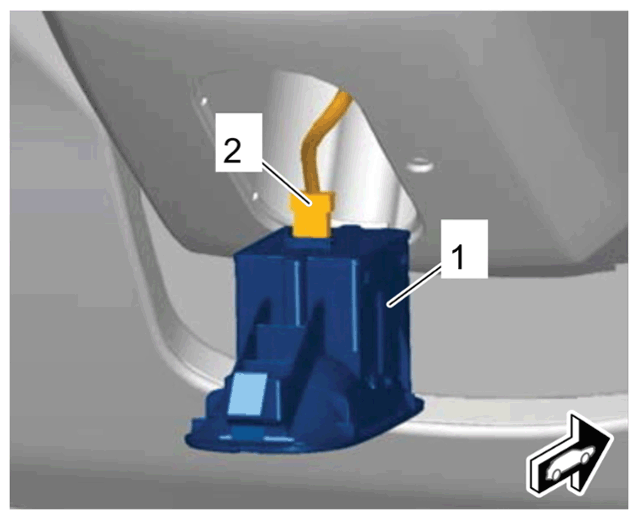

    G15154458Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable plug for height adjustment switch

    1. 2.1 Release and disconnect cable plug -2-  .
