Removing Casing (Lower Part)
WARNING: This page is about a different variant/trim than selected.

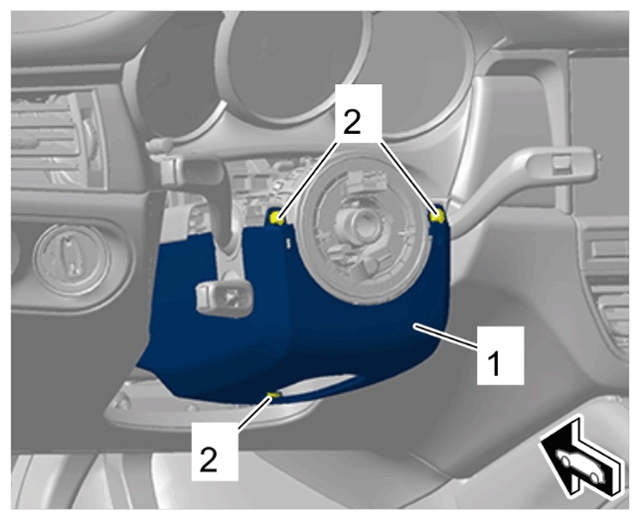

- Remove trim panel -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Casing (lower part)
- 1.1 Turn the steering wheel so that the screws -2-
on the front are accessible.
- 1.2 Unscrew screws on casing -2-
.
- 1.3 Remove trim panel -1-
.
