Removing Casing (Upper Part)

WARNING: This page is about a different variant/trim than selected.
  1. Move steering wheel all the way back and to its lowest position.
  2. Loosen upper part of casing -1-  .

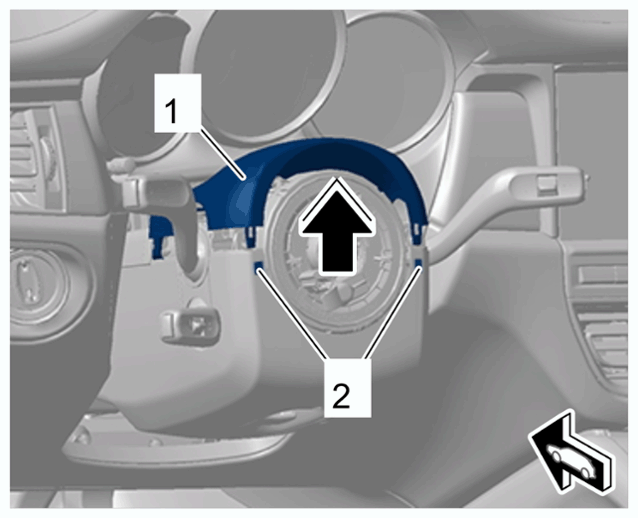

    G15154430Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Casing (upper part)

    1. 2.1 Turn the steering wheel so that the openings -2-  on the front are accessible.
    2. 2.2 Unclip upper part of casing -1-  through the openings -2-  on the front using a suitable tool.
  3. Remove upper part of casing -1-  .

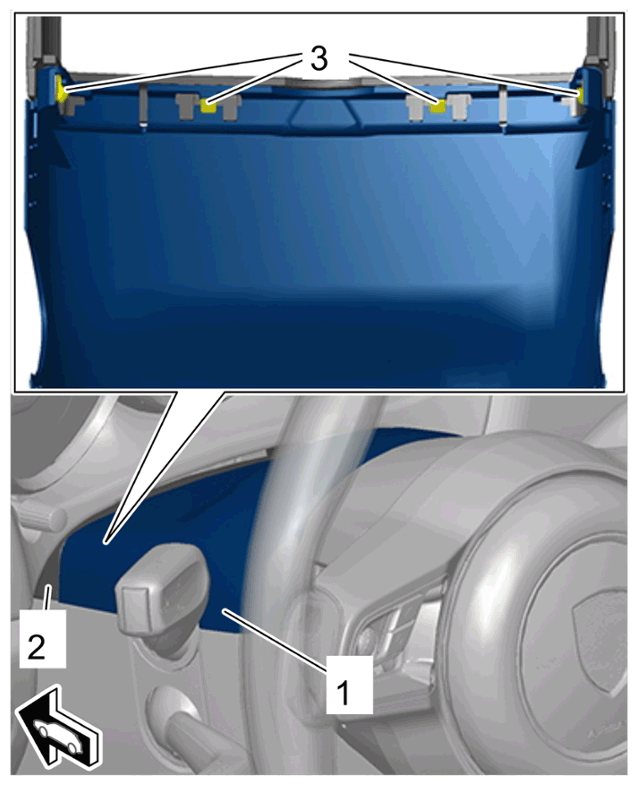

    G15154431Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Casing (upper part) on dust boot

    1. 3.1 Unclip retaining lugs -3-  for the dust boot -2-  from upper part of casing -1-  .
    2. 3.2 Remove casing -1-  .
