Disassembling Steering Wheel

WARNING: This page is about a different variant/trim than selected.
  1. Loosen rear cover -1-  .
    G15154408Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover

    1. 1.1 Unscrew screws on rear cover -2-  .
    2. 1.2 Carefully detach rear cover -1-  slightly from the steering wheel.
  2. Release locking lug -arrow-  and lift control unit -1-  slightly and pull it forward so that the locking lug -arrow-  can no longer lock by itself.

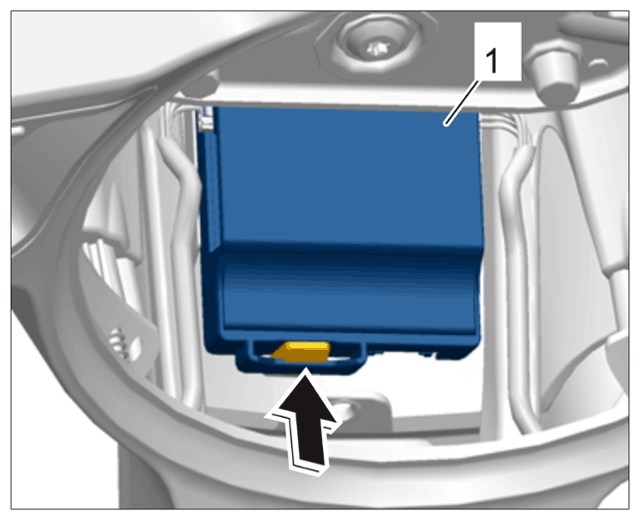

    G15154409Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control unit mounting

  3. Remove rear cover -1-  from the steering wheel.

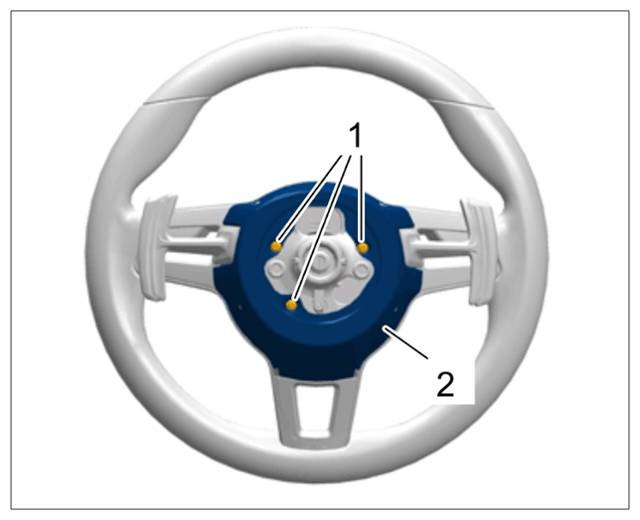

    G15154410Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover

  4. Loosen paddles -2-  .

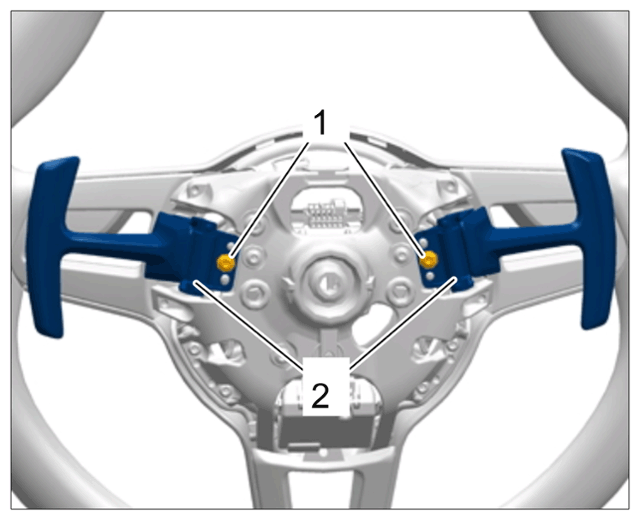

    G15154411Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Paddles

    1. 4.1 Unscrew screws on the paddles -1-  .
    2. 4.2 Detach paddles -2-  from the steering wheel.
  5. Remove paddles.

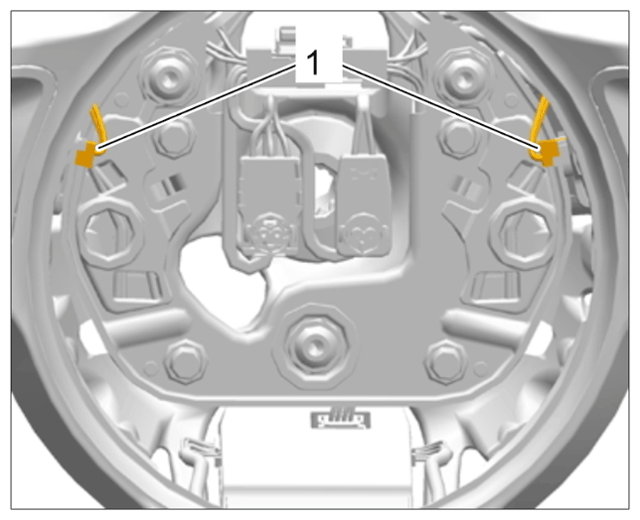

    G15154412Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for paddles

    1. 5.1 Release and disconnect electric plug connections for paddles -1-  .
    2. 5.2 Remove paddles.

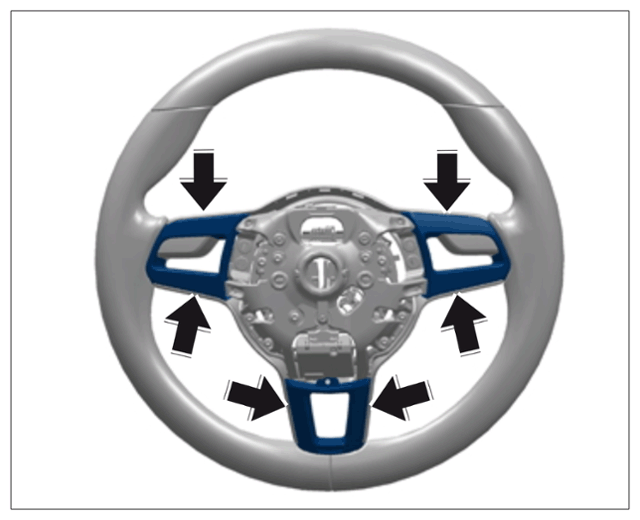

  6. Unclip rear trims at positions -Arrows-  using a suitable thin tool, e.g. a feeler gauge.
    G15154413Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rear trims

  7. Only for vehicles with heated steering wheel:

    Release and disconnect electric plug connection for heated steering wheel switch -1-  on the rear trim -2-  .

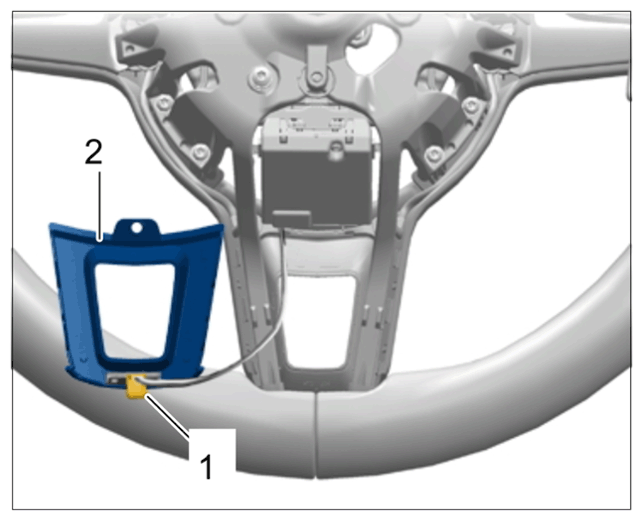

    G15154414Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for heated steering wheel switch

  8. Unscrew screws on main trim -1-  .

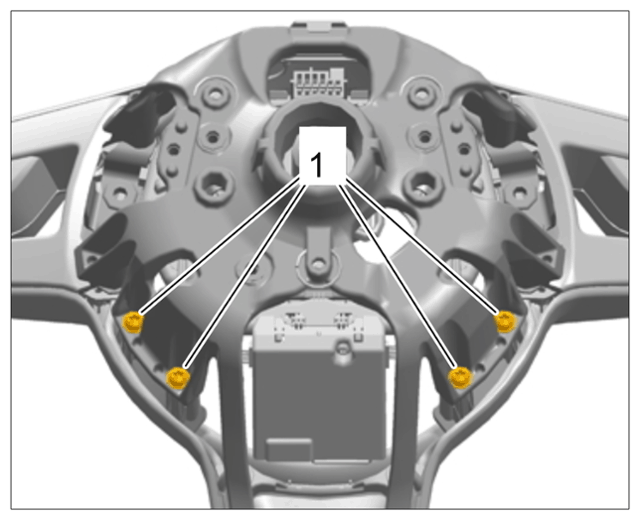

    G15154415Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws for main trim

  9. Lift main trim -1-  straight up.

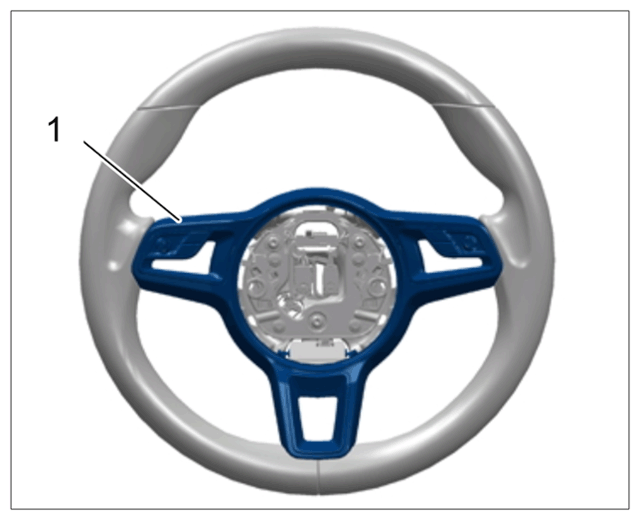

    G15154416Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Main cover

  10. Remove main trim -2-  .

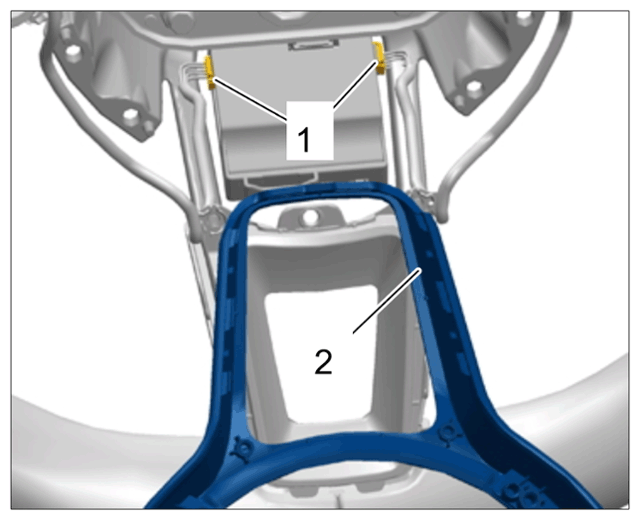

    G15154417Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for multi-functional switch

    1. 10.1 Release and disconnect electric plug connections for multi-functional switch -1-  .
    2. 10.2 Lift main trim -2-  up and remove it.
  11. Remove driving mode switch -1-  .

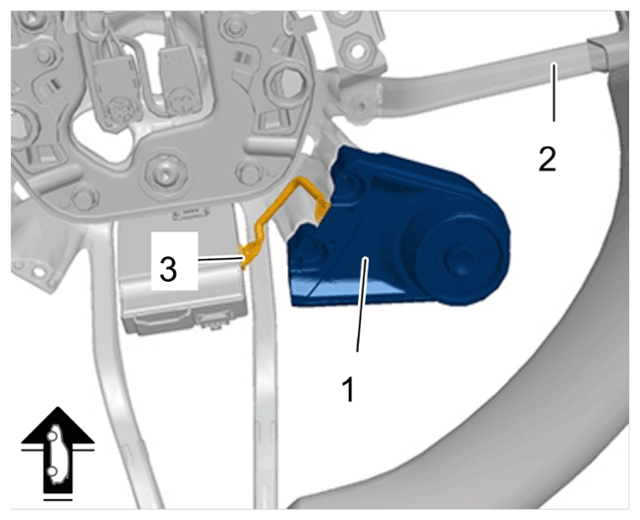

    G15154418Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Driving mode switch

    1. 11.1 Loosen driving mode switch -1-  from the steering wheel -2-  .
    2. 11.2 Release and disconnect electric plug connection for driving mode switch -3-  .
    3. 11.3 Remove driving mode switch -1-  .
  12. Remove multi-functional switch -2-  and front trim -3-  from main trim.

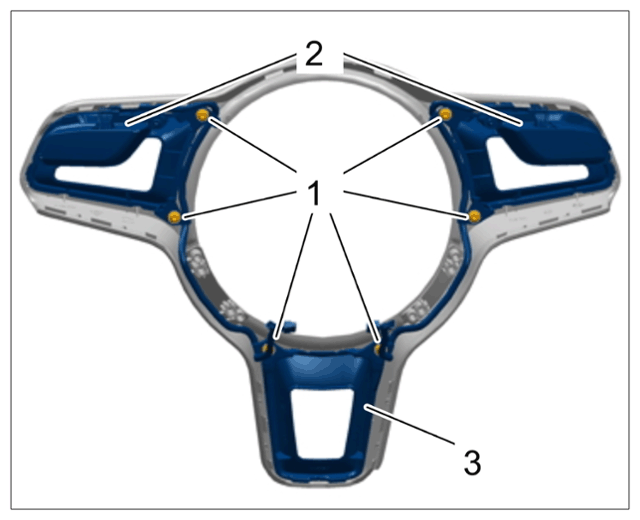

    G15154419Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Multi-functional switch and front trim on main trim

    1. 12.1 Remove screws -1-  .
    2. 12.2 Remove multi-functional switch -2-  .
    3. 12.3 Remove front trim -3-  .

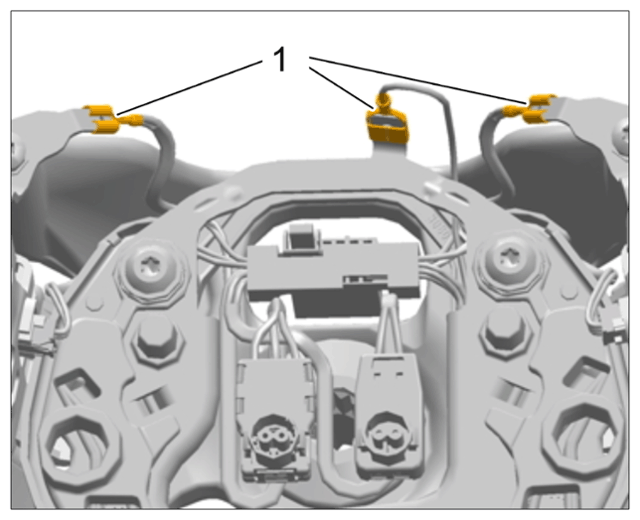

  13. Disconnect electric plug connections -1-  from connector lugs.
    G15154420Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for steering wheel

  14. Remove contact bridge -2-  .

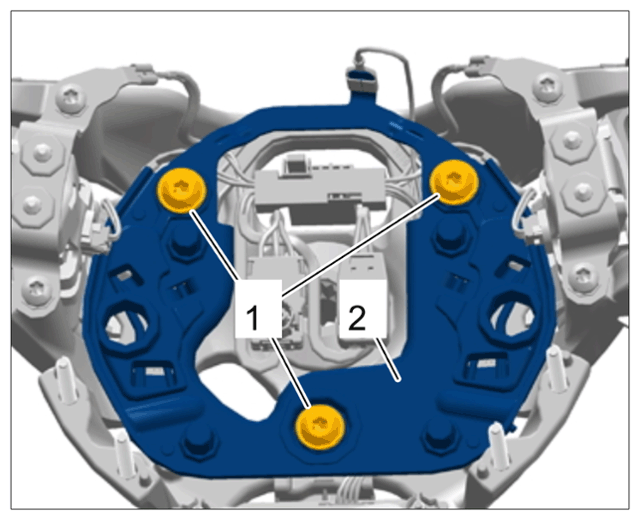

    G15154421Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Contact bridge

    1. 14.1 Unscrew screws on contact bridge -1-  .
    2. 14.2 Remove contact bridge -2-  .
  15. Disconnect electric wire harness -2-  .

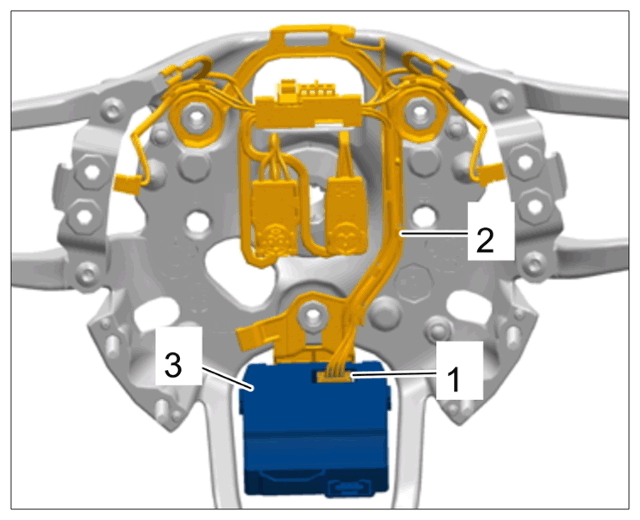

    G15154422Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness on control unit

    1. 15.1 Release and disconnect electric plug connection -1-  .
    2. 15.2 Only for vehicles with heated steering wheel:

      Release and disconnect the electric plug connection for the heated steering wheel at the control unit -3-  .

  16. Remove electric wire harness -1-  .

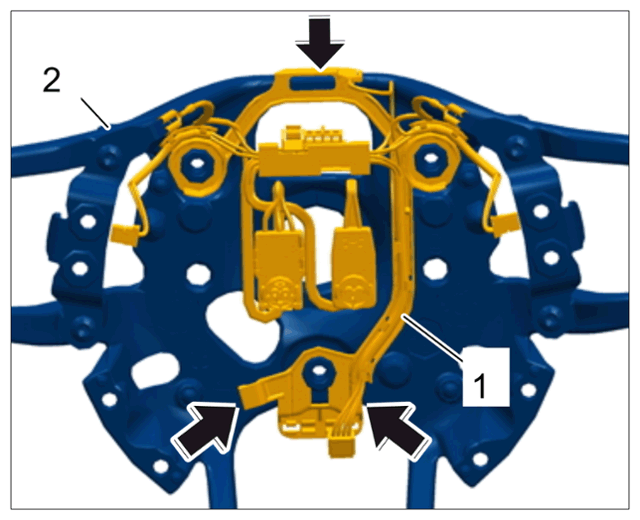

    G15154423Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness

    1. 16.1 Unclip clips -Arrows-  .
    2. 16.2 Remove electric wire harness -1-  from steering wheel skeleton -2-  .
