Assembling Steering Wheel

Information

Multi-functional switches can be used immediately after installation. They do not need to be coded.

1. Installation is performed in reverse order. Pay particular attention to the following:

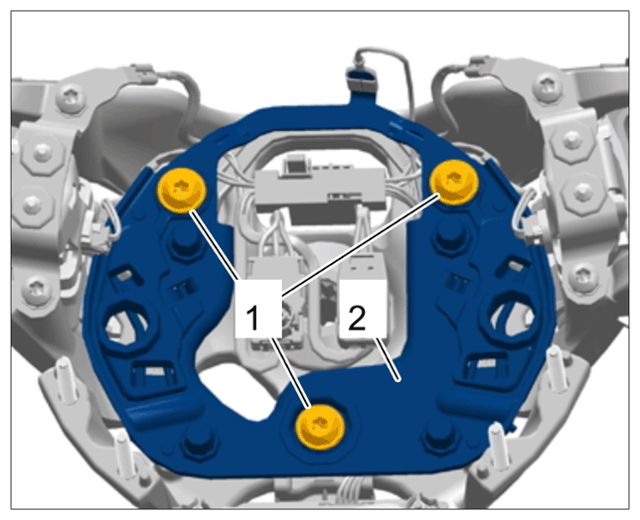

   1. 1.1 Tighten screws on contact bridge -1-  .

      > Tightening - torque 6 Nm (4.5 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Contact bridge

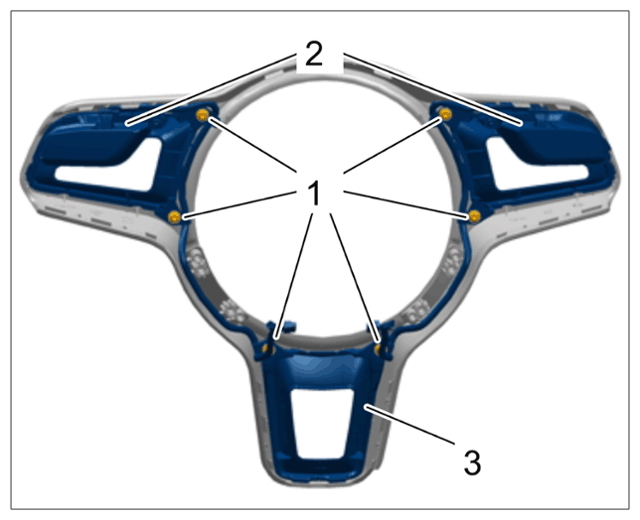

   2. 1.2 Tighten screws on multi-functional switch and front trim -1-  .

      > Tightening - torque 0.45 Nm (0.25 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Multi-functional switch and front trim on main cover

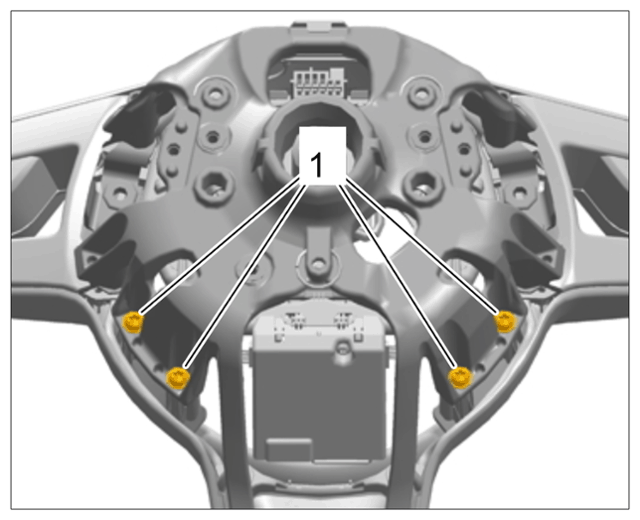

   3. 1.3 Tighten screws on main cover -1-  .

      > Tightening - torque 2 Nm (1.5 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Main cover

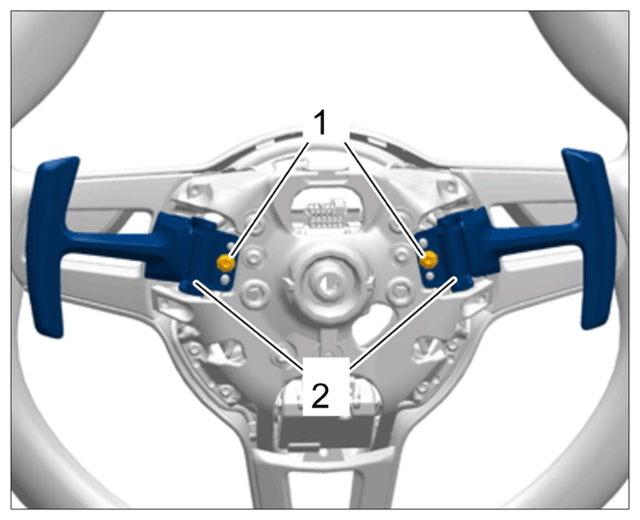

   4. 1.4 Tighten screws on paddles -1-  .

      > Tightening - torque 2.5 Nm (1.75 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Paddles

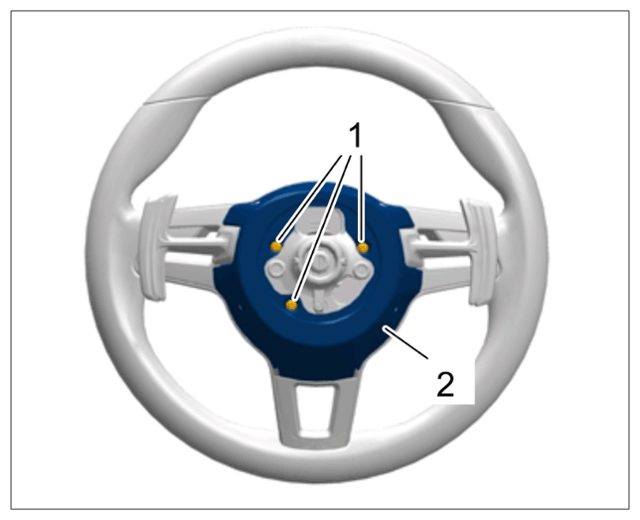

   5. 1.5 Tighten screws on rear cover -1-  .

      > Tightening - torque 2.7 Nm (2.1 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear cover
