Installing Steering Wheel
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
- 1.1 Wheels must be in straight-ahead position.
- 1.2 Markings -1-
between the steering wheel and steering column must be aligned.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

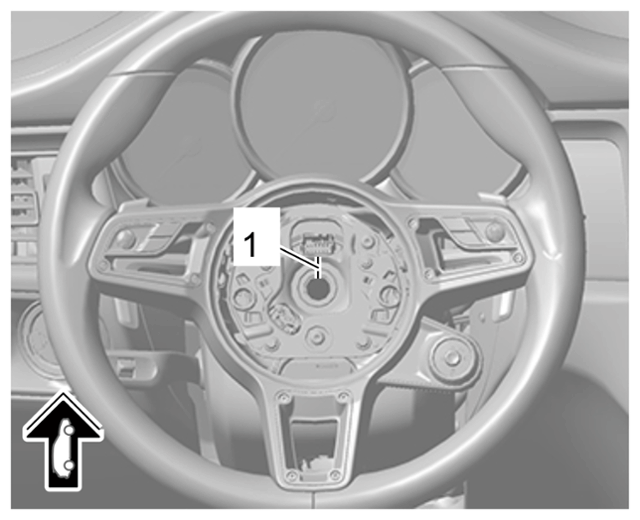

Steering wheel marking
- 1.3 Replace screw -1-
.
- 1.4 Tighten screw -1-
.
> Initial - tightening 30 Nm (22.1 ftlb.)
> Final tightening + 90°
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

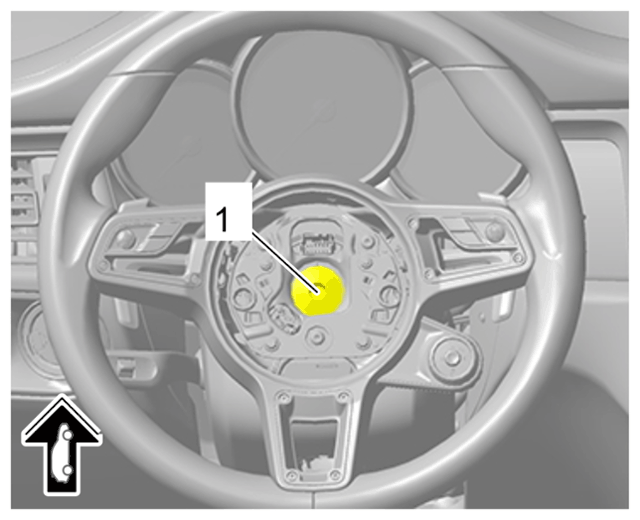

Mounting for steering wheel
