Transfer Box

WARNING: This page is about a different variant/trim than selected.

Information

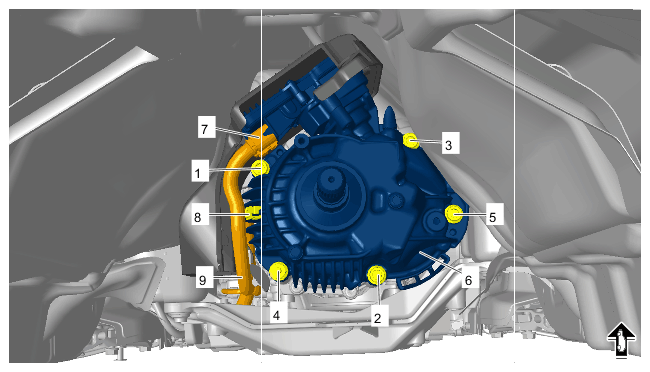

Fig 1: Transfer Box Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transfer box

1-5	Transfer gear to double clutch transmission Screw, M10 x 70 > Initial - tightening 50 Nm (37 ftlb.) > Final tightening + 90°
1-5	Transfer gear to double clutch transmission Screw, M10 x 75 > Initial - tightening 40 Nm (30 ftlb.) > Final tightening + 90°
not pictured	Transfer gear control unit (with integrated servo motor) to transfer gear Screw, M8 x 50 > Tightening - torque 33 Nm (24 ftlb.)
