Overview Of Screw Plugs

WARNING: This page is about a different variant/trim than selected.

Double clutch transmission

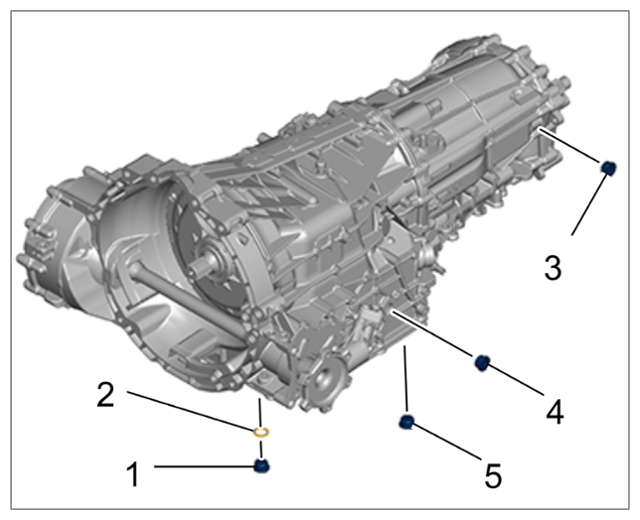

Fig 1: Screw Plugs Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of screw plugs

1	ATF drain plug (oil pan) > Tightening - torque 45 Nm (33 ftlb.)
2	Sealing ring/replace
3	Transmission oil inspection plug (gear wheels)/replace > Tightening - torque 60 Nm (44 ftlb.)
4	ATF inspection and ATF filler screw/replace > Tightening - torque 60 Nm (44 ftlb.)
5	Transmission oil drain plug (gear wheels)/Replace > Tightening - torque 60 Nm (44 ftlb.)

Transfer box (VTG)

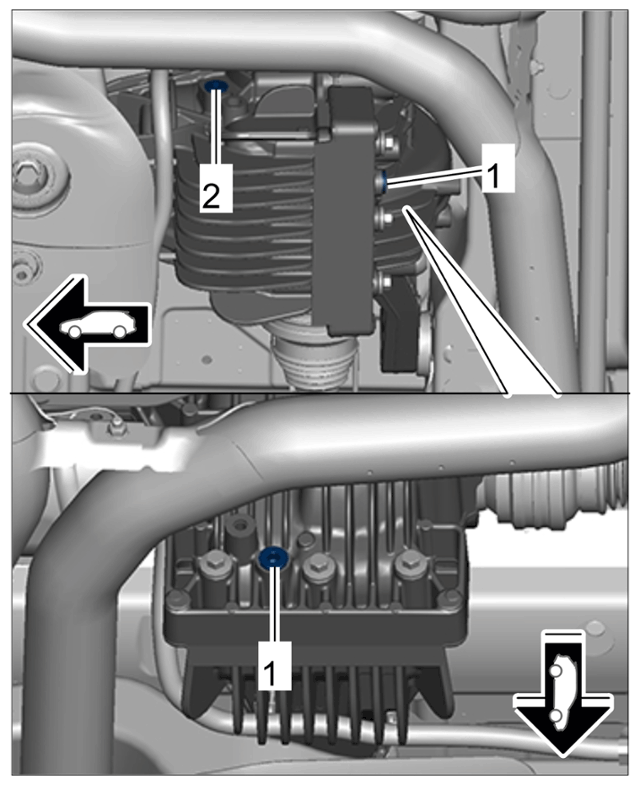

Fig 2: Drain Plug And Inspection Plug Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drain plug and inspection plug

1	Inspection and filler plug > Tightening - torque 20 Nm (15 ftlb.)
2	Drain plug > Tightening - torque 20 Nm (15 ftlb.)

Rear axle differential

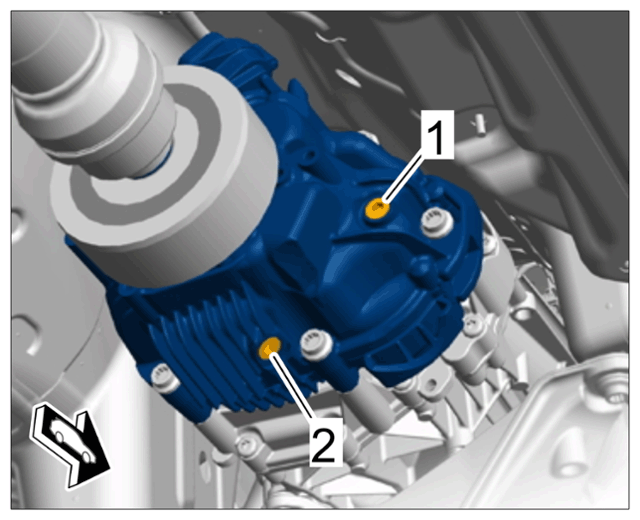

Fig 3: Rear Final Drive Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear final drive

1	Oil drain plug on rear final drive > Tightening - torque 35 Nm (26 ftlb.)
2	Inspection and filler plug on rear final drive > Tightening - torque 35 Nm (26 ftlb.)
